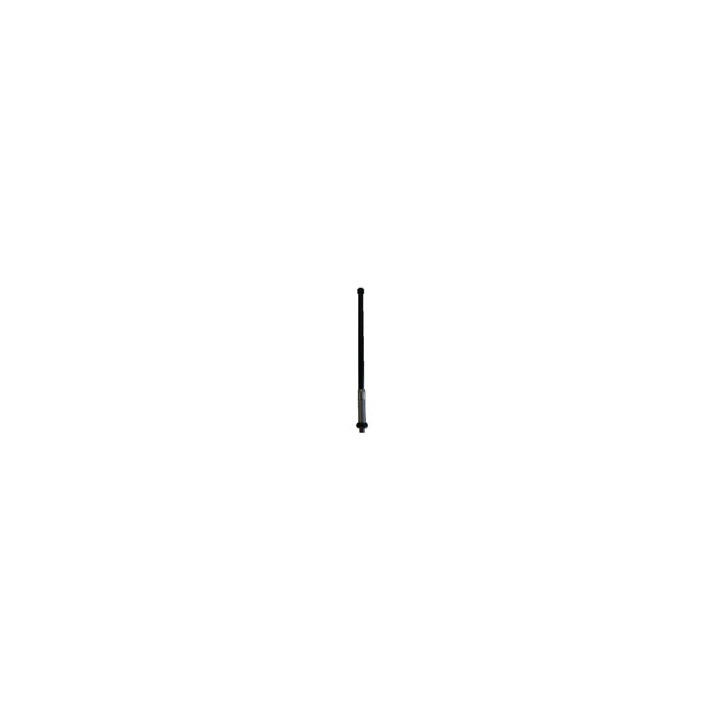

• 4.4-5.0GHz Spring/hole Mount Echo Series Antenna

4.4-5.0GHz Spring/hole Mount Echo Series Antenna, 9 dBi, Direct N-Jack Connector, Black, SOI

Marca Mobile Mark
Part Number ECOS9-4700DN-BLK

Quick look

Product Features: Single Polarity | Vertical Polarization
Antenna Types: Omnidirectional
Frequencies: 4.4-4.9 GHz | 4.9-5.8 GHz

(edytuj w module Customer Reassurance)

(edytuj w module Customer Reassurance)

Surface Mount Spring Mount Wi-Fi, 2.4 & 5 GHz Antennas


* Integral spring provides strength at speed and provides flex for overhead obstructions


* Ground plane independent designs can be used on any surface


* Available in models with 5 dBi - 9 dBi gain


* Separate cable assemblies allow choice of cable length and connector type.


Mobile Mark's spring mounted ECO Mobile Series antennas cover popular systems: Wi-Fi 2.4 or 5 GHz, Public Safety 4.9 GHz, 5 GHz Broadband and DSRC 5.9 GHz.


These ECOS antennas are ground plane independent and can be used on any surface.


High gain coupled with low loss cable compensates for the losses that occur at higher bands. These models terminate on the bottom with an SMA Female connector.


The ECO Spring mount antenna allows easy insertion to a vehicle or bulkhead. A 1 inch hole (2.54 cm) is required for mounting. The base of the antenna has a locking collar, the internal portion is tilt-in. Metal teeth on the internal portion secure the inside as the external locking collar is tightened down. The collar is outfitted with an O-ring, and has flats for securing with a wrench.


The heavy duty spring maintains the antenna's vertical position at all speeds, but will deflect if hit by an obstruction.


Data Sheet

Product Features Single Polarity | Vertical Polarization
Antenna Types Omnidirectional
Frequencies 4.4-4.9 GHz | 4.9-5.8 GHz
