• 824-894/1850-2170MHz Dual Band 3 dBi CELL/PCS Surface Mount

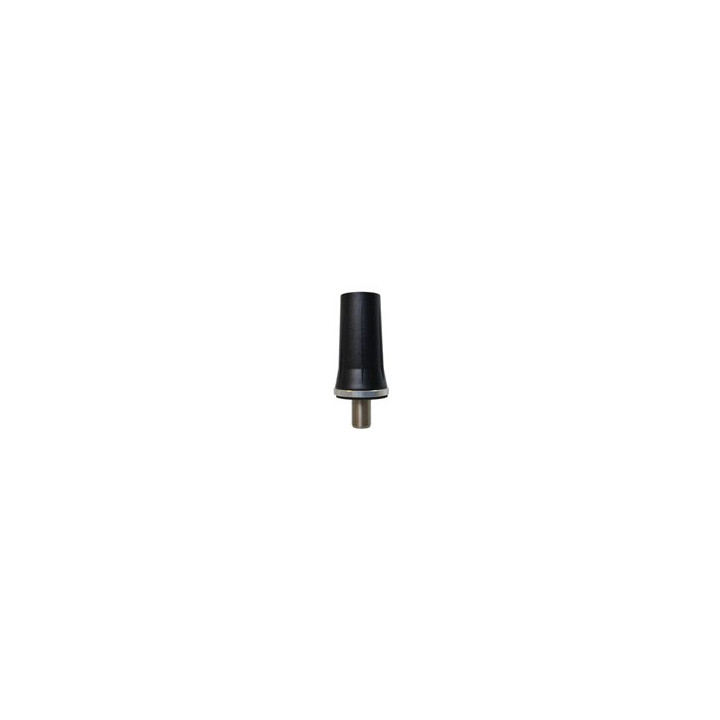

824-894/1850-2170MHz Dual Band 3 dBi CELL/PCS Surface Mount Medium Profile Antenna, Direct N-Female Connector, Black, SOI

Marca Mobile Mark
Part Number RM3-900/1900-DN-BLK

Quick look

Antenna Types: Omnidirectional
Frequencies: 1.7-2.2 GHz | 800-980 MHz

(edytuj w module Customer Reassurance)

(edytuj w module Customer Reassurance)

Surface Mount & Mag-Mount GSM/CDMA & Broadband


* Broadband RMM model for worldwide coverage including UMTS & 802.11b/g


* Rugged Stud mount uses 5/8'' hole (16 mm)


* Flexible seal provides watertight use


* The benchmark for PTCRB certifiable systems


These antennas complement Mobile Mark's broad line of antenna products for Cellular applications.


The RM3 Dual Band is a medium profile (3'' H, 76 mm) antenna with performance of 3 & 5 dBi max (frequency dependent). A ground plane is required to maximize gain. The antenna radome consists of black ASA UV resistant plastic, with a heavy duty metal base and threaded feed thru, or a direct N version is also available.


The bottom of the RM series is outfitted with a gasket for complete sealing. A mounting nut is provided. Magnetic mount versions, MGRM-900/1900 allow use without drilling a hole.


The RMM-UMB is a broadband version capable of simultaneous operation on worldwide bands from 750 MHz up to 2.7 GHz, with excellent response.


A direct N version is also available along with the standard surface mount.


Data Sheet

Product Features Dual-Band Antennas | Single Polarity | Vertical Polarization
Antenna Types Omnidirectional
Frequencies 1.7-2.2 GHz | 800-980 MHz
