• 4900-5875MHz, 10 dBi Vertically Polarized Omnidirectional

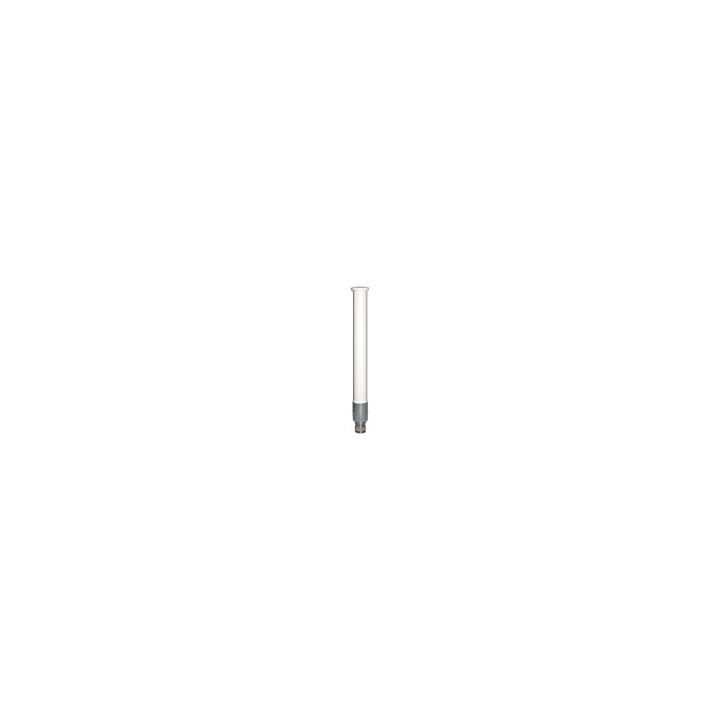

4900-5875MHz, 10 dBi Vertically Polarized Omnidirectional Antenna with fixed N-Male connector

Marca Laird Connectivity
Part Number S4908WBFNM

Quick look

Product Features: Vertical Polarization
Antenna Types: Omnidirectional
Frequencies: 4.4-4.9 GHz | 4.9-5.8 GHz | 5.2 GHz | 5.4 GHz | 5.8 GHz
$90.44
Pricing may be subject to tariffs.

(edytuj w module Customer Reassurance)

(edytuj w module Customer Reassurance)

Base Station Antennas


Laird Technologies WiMax Base Station Antennas are available in 700MHz, 2300-2700MHz, 3300-3800MHz and 4900-5850MHz. They come in two basic types; Sectorized and Omnidirectional. The high gain sector antennas are available with horizontal beamwidths of 45, 60, 90 and 120 deg. In addition, there is a field adjustable beamwidth model available for ultimate system flexibility.


The antennas are capable of handling up to at least 10W of RF power and come standard with an N Female connector. Input Impedance is 50 ohms.


The sector antennas include pole mount tilt brackets which typically accommodate 1.5'' to 4" diameter poles while providing at least 10 deg of mechanical downtilt. Typical wind survival rating is 136mph. All antennas are DC grounded for impulse suppression.


Operational Temperature is -40 to +70 deg C.



Wide Band VPOL 5GHz Omni Antenna


- Available in 8dBi and 10dBi gains;


- Slim profile (1'') and light weight (.5 lb);


- N Male connector for direct connect to equipment.


Data Sheet

Product Features Vertical Polarization
Antenna Types Omnidirectional
Frequencies 4.4-4.9 GHz | 4.9-5.8 GHz | 5.2 GHz | 5.4 GHz | 5.8 GHz
