• 4G/3G Multiband Phantom Antenna

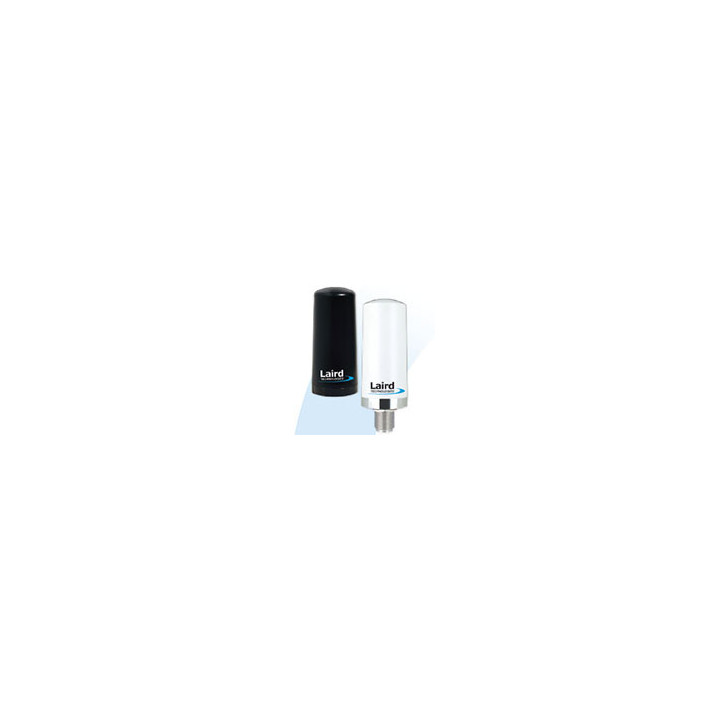

4G/3G Multiband Phantom Antenna, 698-960MHz, 1700-2700MHz, N-Female, Black, Permanent mounting option, No Ground Plane

Marca Laird Connectivity
Part Number TRA6927M3PBN-001

Quick look

Product Features: Dual-Band Antennas | LTE Antennas | Vertical Polarization
Antenna Types: Omnidirectional
Frequencies: 1.7-2.2 GHz | 2.3-2.7 GHz | 2.4 GHz | 2.5 GHz | 700 MHz | 800-980 MHz
$101.81
Pricing may be subject to tariffs.

(edytuj w module Customer Reassurance)

(edytuj w module Customer Reassurance)

4G/3G Phantom® Antenna Ideal for 700/806/850/1800/1900/2100/2300/2500/2600 MHz Applications


Laird Technologies' unique Phantom® antenna operates simultaneously in the 698-960 MHz and 1700-2700 MHz bands, making it ideal for 4G/3G applications. The mechanically robust design is suitable for both indoor and outdoor applications with wide bandwidth and a low angle radiation pattern that is superior to traditional gain antennas in most applications. The antenna is ideal for both ceiling and surface mount applications.


The industry standard NMO mounting socket mates with all Laird Technologies' magnetic, trunk lid and hole mount configurations. A threaded permanent stud mount model is also available for vandal resistant mounting on brackets, panels, ceilings or any other kind of housing.


Features


* Mechanically robust for both Indoor/Outdoor applications


* Applicable for both 3G and 4G application


* Domestic LTE 700 band and Global LTE 2600 band


* WiMAX 2300/2500/2600 bands


* Domestic Cellular and Global GSM


* Phantom out-performs a 3 dBi whip in many applications


Markets


* Public Safety


* Cellular


* M2M


* Utilities


* Data transport


* Transportation


* IBW


Data Sheet

Product Features Dual-Band Antennas | LTE Antennas | Vertical Polarization
Antenna Types Omnidirectional
Frequencies 1.7-2.2 GHz | 2.3-2.7 GHz | 2.4 GHz | 2.5 GHz | 700 MHz | 800-980 MHz
DAS Components DAS Antennas
