• MTI CPE Panel Antenna, 4.9-5.1GHz

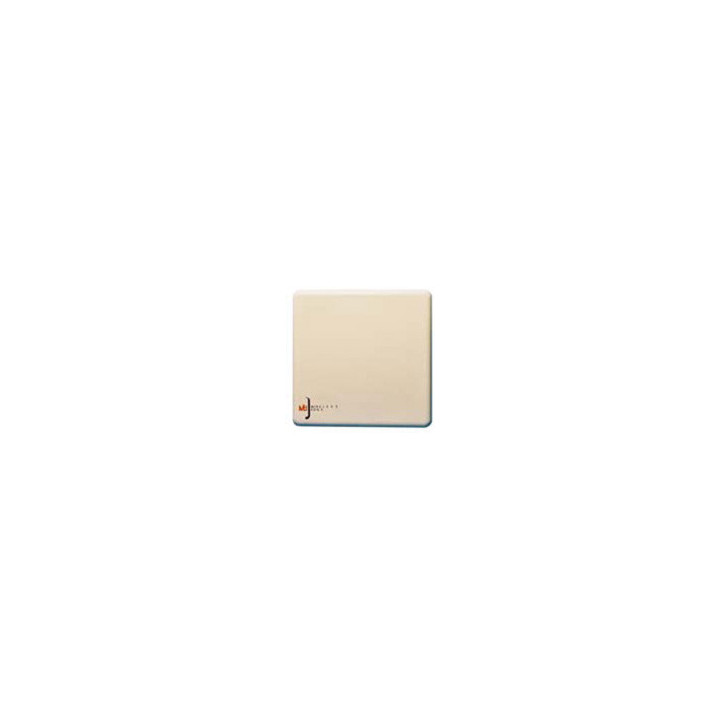

MTI CPE Panel Antenna, 4.9-5.1GHz, Gain: 25 dBi, Antenna for enclosure

Marca MTI Wireless Edge
Part Number MT-466004/S/E

Quick look

Product Features: Single Polarity
Antenna Types: Directional Panel
Frequencies: 4.4-4.9 GHz | 4.9-5.8 GHz

(edytuj w module Customer Reassurance)

(edytuj w module Customer Reassurance)

Electrical


FREQUENCY RANGE


4.9-5.1 GHz


GAIN


25 dBi (min)


VSWR


1.5 : 1 (typ) 1.7 : 1 (max)


3 dB AZIMUTH BEAMWIDTH


6° (typ)

3 dB ELEVATION BEAMWIDTH


6° (typ)

POLARIZATION


Linear (Vertical or Horizontal)


SIDELOBES LEVEL


ETSI EN 302 085 V1.1.2, TS1-TS5


CROSS POLARIZATION


-20dB (max)


F/B RATIO


-30 dB (max)


INPUT IMPEDANCE


50 (ohm)

INPUT POWER


6W (max)


LIGHTNING PROTECTION


DC Ground

Mechanical


DIMENSIONS (LxWxD)


450 x 450 x 30mm (max)


WEIGHT


3 Kg (max)


RADOME


Plastic

BASE PLATE


Aluminum with chemical conversion coating

MOUNTING KIT


N/A. Environmental Enclosure required.

Environmental


Temperature Range


-45°C +70°C

Humidity


95%

ICE AND SNOW


25mm Radial

WIND SPEED


SURVIVAL: 220 Km/h
OPERATION: 160 Km/h

Data Sheet

Product Features Single Polarity
Antenna Types Directional Panel
Frequencies 4.4-4.9 GHz | 4.9-5.8 GHz
Antenna Sizes 2 foot
