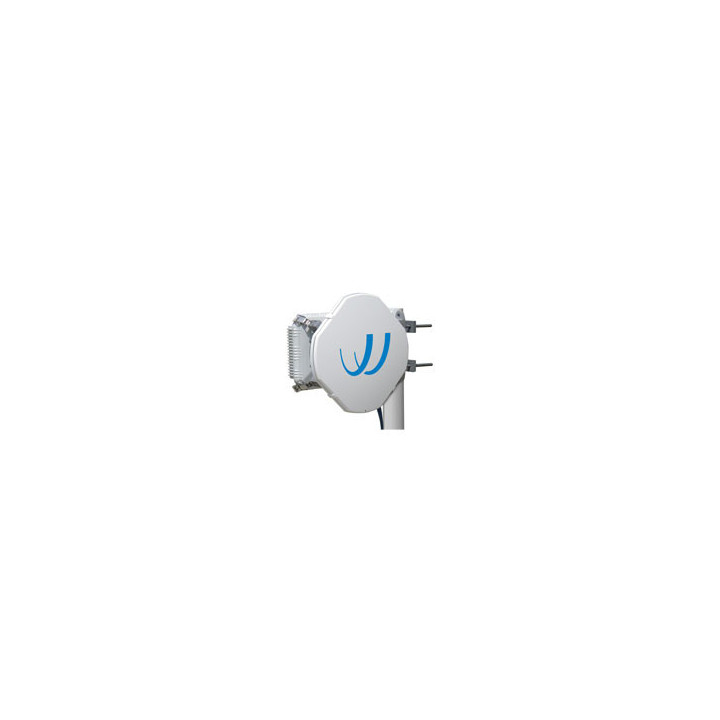

FLEX4G-LITE Base ODU up to 3Gbps Full-duplex Link, 80GHz, -48VDC & PoE, 6 port GigE (4x RJ45, 2x SFP), ACM, Integrated Adaptor P

FLEX4G-LITE Spectrum-Efficient 3Gbps Links-

The new all-outdoor Flex4G-LITE 80GHz radio offers up to 3Gbps full duplex throughput and the highest availability of any high capacity millimeter wave radio. Its lightweight, compact form factor, with a single optical interface carrying 2.5 Gbps of capacity, greatly simplifies deployment, and minimizes installation and connectivity costs typically incurred with legacy systems that require multiple fiber runs. Supporting carrier networking features including CPRI protocol, and offered at lower price points than competing radios offering less capacity, the FL4G-LITE is the clear choice for aggregation, backhaul, and connectivity supporting business and residential broadband, HD video surveillance, and mobile and Wi-Fi backhaul.

Performance

* Spectrum efficient using 64QAM in 250, 500, and 750MHz wide channels

* Full-duplex providing up to 3Gbps upstream and downstream

* Hitless adaptive rate and modulation

* QPSK/8PSK/16/32/64QAM modulation support

* Highest system gain

* Internal carrier grade L2 switch

* Built-in 2.5GbE support

* Optional CPRI support (Modes 1 - 4)

* SyncE and IEEE1588v2 compliant

* Power over Ethernet and Direct DC

* Extreme ranges supported with optional 30cm (43.8dBi), 60cm (51dBi), and 90cm (54dBi) external slip-fit antennas

* Small form factor and lightweight

* Quick and simple deployment

Applications

* 4G/LTE backhaul for access and aggregation

* Last-mile fiber extension for enterprises

* Temporary high capacity links for disaster recovery

* LAN extensions
