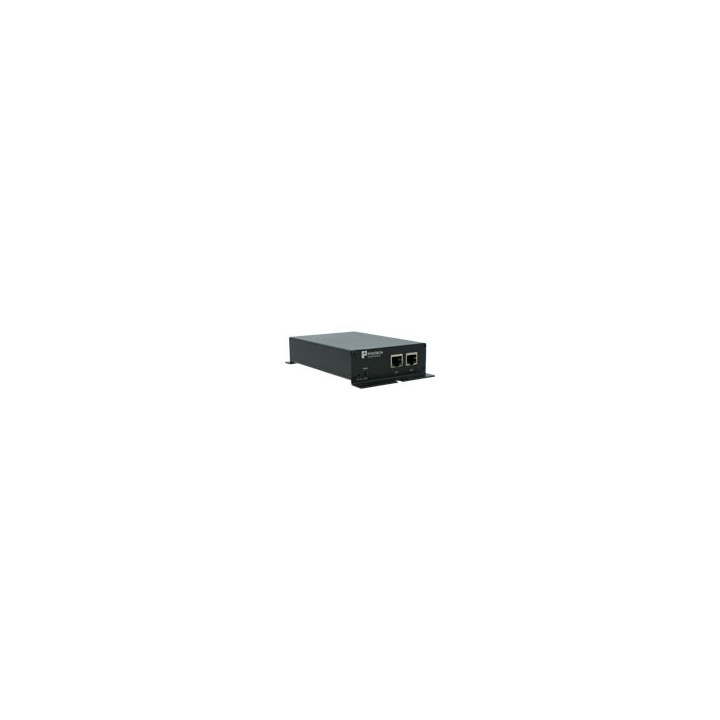

GAM Twisted Pair CPE G.hn (MIMO) to Gigabit Ethernet Bridge with PoE+ Out 802.3at support. AC Wall Adapter included

Delivering Gigabit to the Home over Existing Wiring

G.hn to Ethernet with POE/POE+ Managed Demarcation Point

``Fiber to the Home'' is far from the only and most efficient technology to deliver Gigabit Internet access to subscribers. Retrofitting an existing (brownfield) Multi-Dwelling Unit (MDU) with fiber is complex and expensive.

The G1002-M / G1002-M+ and G1002-C / G1002-C+ series of G.hn to Ethernet adapter complement the popular G1001 series with support for two (2) Gigabit Ethernet ports with one of the ports providing power to Ethernet devices as per the 802.3af / 802.3at standards (G1002-M+ and G1002-C+).

Introducing G.hn

The G1002 series supports the ITU-T G.9960 G.hn Wave-2 standard and is designed to operate over the existing telephone wiring (UTP, CAT-3 or CAT-5/5e) or coaxial cabling and deliver a Gigabit Internet service to each subscriber at a lower cost and without the complexity and delays associated with in-building fiber installation. G.hn is used as an Access technology by Operators looking to simplify their access network and backend infrastructure with an Ethernet-like technology that is highly scalable without some of the inherent complexity of DSL-related technologies. With G.hn as the Access technology, Operators deliver advanced services such as Gigabit High Speed Residential Internet and 4K IPTV.

About the G1002 Series Managed Demarcation Point with POE / POE+ support

The G1002 series terminates the G.hn link under the control of the Positron GAM, making sure the information transmitted over the G.hn links is protected with strong AES-128 encryption. It offers comprehensive VLAN support as per the IEEE 802.1q standard and the VLAN mode of each port is individually configurable: Trunk, Access or Untagged.

The G1002-M+ and G1002-C+ further add support on GigE port #1 for Power over Ethernet (POE or POE+) as per the IEEE 802.3at standard (30W) to devices such as Wi-Fi Access Points, IP Camera or Residential Gateways (RG).
