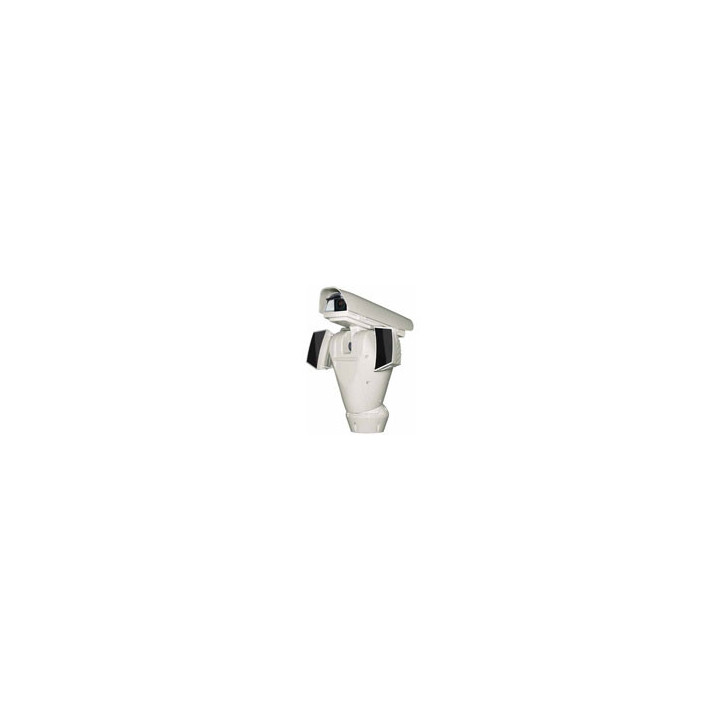

Ulisse PTZ Day and Night Surveillance Positioning unit with bracket for VIDEOTEC UPTIRN LED Illuminators (sold separately) 24VAC

ULISSE IR360 - Unit for day and night surveillance with continuous rotation

- Integrated housing, P&T head and telemetry receiver

- Bracket for two VIDEOTEC infrared LED illuminators for the night surveillance without rotating cables (illuminators not included)

- Continuous horizontal rotation

- Available with 28x and 36x camera and with wiper

- IP66

- Variable speed: 0.1°-40°/s Pan and 0.1°-30°/s Tilt

- Configuration through OSD (On Screen Display)

- Multiprotocol

ULISSE IR360 has been specifically created for applications of day/night video surveillance in external environments. This positioning system integrates a high performance P&T head with housing, telemetry receiver and a bracket for two infrared LED illuminators (not included) without external rotating cables.

The rotation on the horizontal axis is continuous with a variable speed up to 40°/s while the amplitude on the vertical axis varies from +90° to -40° with a max speed of 30°/s. ULISSE IR360 controls the functions of autopan and patrol with a tracking accuracy of 0.02° on preset positions recall.

In addition to the OSD set-up, the system is equipped with an RS232 interface allowing the possibility to update to the latest firmware version. The positioning system is controlled through a RS485/RS422. The telemetry signal can be transmitted in an active way for chain configuration of several ULISSE IR360 units together. Multiple communication protocols are embedded.

Available versions with SONY block camera combining an incredible 36x or 28x optical zoom, with integrated wiper and with integrated video server for IP control of the PTZ functions.

The ULISSE IR360 is designed to work only with the illuminators of the VIDEOTEC UPTIRN-series.
