License Upgrade from Single Carrier to Carrier Aggregation for Nova430i, Nova430e or Neutrino430, eNB serial number needed

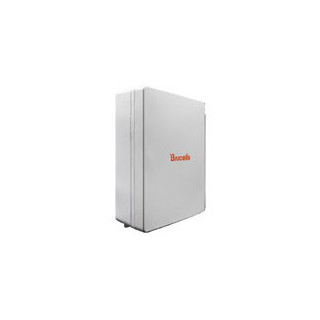

Nova430i - Outdoor eNodeB with Integrated Antenna

The Baicells Nova430i is an advanced two-carrier outdoor eNodeB (eNB) compliant with 3GPP LTE TDD technology. This 4x250mW eNB operates in Carrier Aggregation (CA) mode or Dual Carrier (DC) mode.

In CA mode, Nova430i supports 2CC (2 Component Carriers) DL/UL CA. 2CC DL/UL CA doubles DL/UL peak throughput compared to a single carrier by aggregating two separate spectrum resources into a virtual contiguous spectrum resource.

In DC mode, each carrier is treated as an independent cell, supporting 96+96 users with each cell supporting 5, 10, 15, or 20 MHz bandwidth. Using a Nova430i in DC mode simplifies and streamlines the deployment of split sectors.

In addition, HaloB (an embedded EPC option) is available on the Nova430i as part of the base software. The Baicells patented HaloB solution migrates the necessary core network functions to the eNB.

This product comes with a standard one-year warranty; an extended warranty is available.

HIGHLIGHTS

* Standard LTE TDD Band 48

* GUI-based local and remote Web management

* Compact, all-in-one design of internal antenna and GPS

* Excellent Non-Line-of-Sight (NLOS) coverage

* Peak rate: Up to DL 290 Mbps and UL 70 Mbps with 2x20 MHz bandwidth

* 2CC DL/UL CA improves the spectrum efficiency of fragmented spectrum resources

* Suitable for private and public deployments; any IP-based backhaul can be used, including public transmission protected by Internet Protocol Security (IPsec)

* 96 RRC connected users per carrier (96+96 in DC mode), upgradeable to higher capacity in future releases

* Integrated small cell form factor for quick and easy installation

* Configured out-of-the-box to work with Baicells CloudCore

* HaloB as embedded EPC solution

* Supports Transparent Bridge Mode

* Supports Citizens Broadband Radio Service (CBRS)

* Plug-and-play with Self-Organizing Network (SON) capabilities

* Interoperable with standard LTE Evolved Packet Core (EPC)

* Supports TR-069 network management interface

* Lower power consumption, which reduces OPEX, can be powered easily by Baicells compact outdoor SmartUPS

NOTE: Features can vary based on model or region.
