License Upgrade from Single Carrier to Dual Carrier for Nova436Q, eNB serial number needed

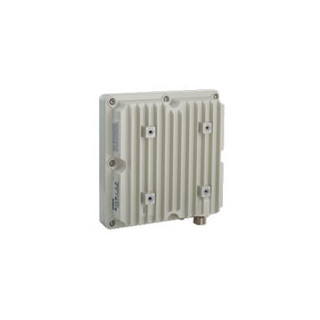

Nova-436Q Outdoor TDD eNodeB

The Baicells Nova-436Q is a two-carrier outdoor eNodeB (eNB) that operates using standardized Long-Term Evolution (LTE) Time Division Duplexing (TDD) technology. This advanced 4x1W eNB delivers carrier aggregation (CA) across contiguous and non-contiguous channels, as defined by 3GPP. Each carrier can handle up to 20 MHz bandwidth; therefore, when aggregated the total bandwidth is 40 MHz. With Nova-436Q, you can achieve the capabilities of two eNBs with just one hardware unit. The benefits include increased capacity, better coverage, and less footprint.

Note: Future software for the 436Q will support dual carrier (split) mode, where you can run the eNB as two separate carriers, each with up to 20 MHz bandwidth.

Easy Deployment

* Suitable for private and public deployments

* Any IP based backhaul can be used, including public transmission

* Supports GPS synchronization

* Lower power consumption to reduce OPEX

* Plug-and-play with future self-organizing network (SON) capabilities

* IoT with most Evolved Packet Core (EPC) vendors

Better Performance

* Standard LTE TDD Bands 42/43/48

* Complies with 3GPP Release 13 standards

* Supports 5/10/15/20 MHz bandwidth on each carrier

* Supports 2 carriers, and will be software upgradeable to split mode and other features

* Excellent non-line-of-sight (NLOS) coverage

* Aggregate peak rate: (up to) DL 220 Mbps, UL 56 Mbps with 2x20 MHz and using all Cat6/7 UEs

* 32 concurrent users; upgradeable to higher capacity in future software releases

* Supports 4-port antenna or 2 antennas with 2 ports

Easy Management

* GUI-based local and remote Web management

* TR069 network management interface support

* Highly secured with equipment certification against potential intrusion risk
