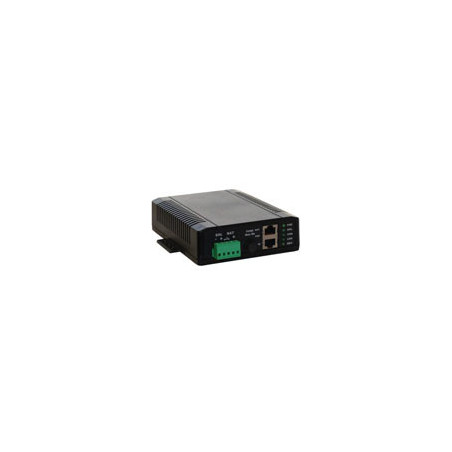

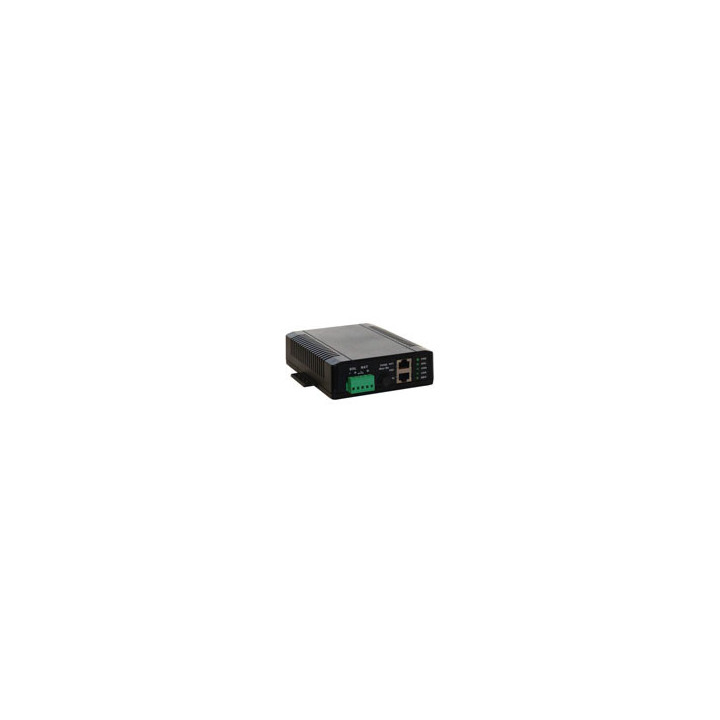

• PoE/Solar 8A Dual input Battery Charging Controller

PoE/Solar 8A Dual input Battery Charging Controller, 24V In, 24V PoE Out. Up to 130W Panel, 2.6A PoE Input, 60W

Manufacturer Tycon Systems
Part Number TP-SCPOE-2424-HP
Out of stock

Quick look

Product Types: Network Controllers
$109.95
Pricing may be subject to tariffs.
This product is currently unavailable. Please call +1 888 946 6266 to check availability.

1-888-WINNCOM / sales@winncom.com

Available Monday through Friday, from 8:00 AM to 5:00 PM EST.

TP-SCPOE-2424-HP - PoE /Solar Charge Controllers


Tycon Solar® unique PoE/Solar charge controllers have dual inputs to charge batteries from a PoE source and also a secondary source like solar panels in order to provide redundancy and insure 100% uptime for critical applications. The solar panel input takes priority so that when the sun is shining the grid power usage is minimized. They have a built in PoE inserter regulated voltage output. They have full electronic protections for short circuit, reverse current, overvoltage, overcharge and over discharge.


They have five LED indicators to give a quick visual status if current is being supplied by a PoE source or solar panel, if battery is charging, If load output is turned on and a warning if battery is connected with reverse polarity. Solar and Battery Connections are via 5 screw terminals for wire size up to 10AWG. PoE Input and Output is via 2 RJ45 shielded connectors. There is a secondary output connector on the back with 5 screw terminals for connecting other electronics to the controller using up to 10AWG wire. This PoE output and secondary output are regulated at 24VDC to prevent damage to devices due to overvoltage. The controllers are externally fused with a standard replaceable fuse.


The TP-SCPOE-2424-HP can provide up to 60W total power for powering various equipment.


Features


* Dual Input - Charges 24V Batteries from Solar Panel and / or Passive PoE


* Supports up to 60W Device Load


* Regulated Output Voltage


* Compact and high temperature operation


* Low self consumption < 0.5W


Data Sheet

Product Types Network Controllers
