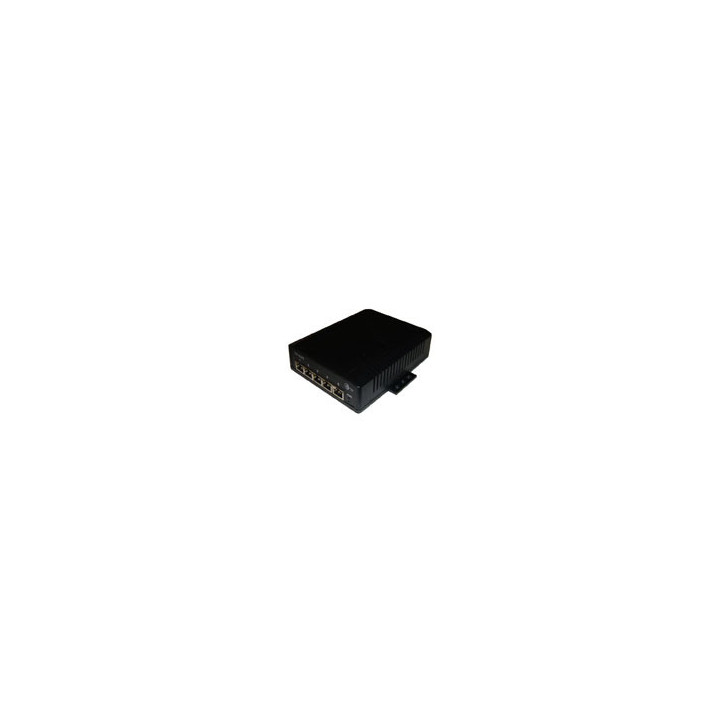

• 5 Port High Power PoE 10/100/1000BaseT Switch

5 Port High Power PoE 10/100/1000BaseT Switch, 802.3at/af PoE Out, 48-57VDC In, 802.3bt Input Port 5

Manufacturer Tycon Systems
Part Number TP-SW5G-D+
Out of stock

Quick look

Product Types: POE | Switches
$242.95
Pricing may be subject to tariffs.
This product is currently unavailable. Please call +1 888 946 6266 to check availability.

1-888-WINNCOM / sales@winncom.com

Available Monday through Friday, from 8:00 AM to 5:00 PM EST.

TP-SW5G-D+ - 802.3bt Input PoE+ Switch


The TP-SW5G-D+ Power over Ethernet (PoE) 5 Port Gigabit switch offered by Tycon® is a fully automatic high speed Layer 2 Ethernet switch with one 802.3bt PoE input and four 802.3at PoE outputs. Ports 1-4 are 802.3at 35W PoE Out. The Uplink Port 5, is 802.3bt compatible so the switch can accept up to 100W PoE on 4 pairs to power the switch and connected devices remotely over CAT5 or higher Ethernet Cable. The Ethernet spec supports distances up to 100m (328ft). By using as a repeater, 200m total distance is realistic.


The switch can accept power via three different interfaces: Wire Terminal Connector, 4 pin Mini DIN connector or via 802.3at/bt PoE input to Uplink Port 5. Two different power inputs can be used for redundancy. The higher voltage takes priority.


The RJ45 connectors are shielded and grounded to the common ``FG'' (Frame Ground) connection. The units have 15kV surge protection on all Ethernet wires and are conformal coated for moisture protection. They have a wide operating temperature range for outdoor and industrial applications.


Features


* Triple Power Inputs: 802.3bt PoE, Wire Terminal, 4 Pin mini DIN


* Gigabit Compatible


* Built-in Surge Protection


* Automatic MDI/MDI-X Crossover


* Automatic Speed and Duplex Sensing


* Low Self Power and High Temperature Operation


* DIN Rail Adapters included


Data Sheet

Product Types POE | Switches
