CAM cnMatrix Intelligent Ethernet PoE Sw

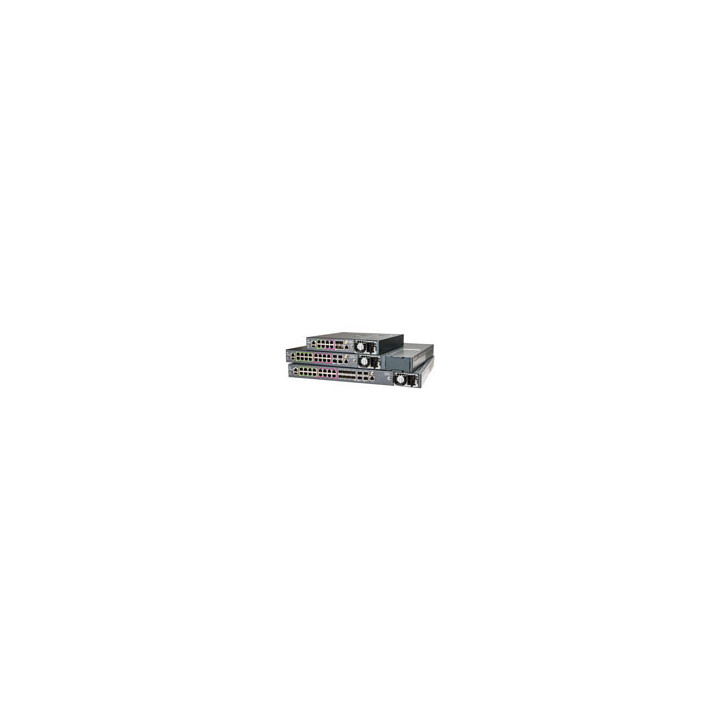

cnMatrix[tm] TX2000 Series Switches

* Cloud Managed

* Non-Blocking, Fully Managed, Enterprise Grade, L2/L3 switch

* Cambium (GPS) Sync - Redundant dual sources

* Comprehensive/Intelligent PoE Solution

* Dual redundant AC/DC removable Power supplies

Cambium Networks' next generation switching platform offers a cloud managed, high performance, feature rich enterprise grade ethernet switching solution.

The cnMatrix platform of switches provides:

* Full Line Rate, non-blocking architecture

* Easy and simple, free cloud (or on premise) management with cnMaestro[tm] or XMS*

* Zero-touch deployment of switches makes installation easy

* Policy Based Automation eliminates manual and time consuming configuration

* Enhanced Security with automated device profiling and segmentation

* Policy Based Automation eliminates manual configuration during adds, moves and changes of network devices

* Unified Wired-Wireless access solution

The cnMatrix TX Series of Switches provides the following addition functionality:

Cambium Sync

* Redundant Input Sync sources

» Internal GPS module (with external antenna)

» cnPulse

* Full per-port control with stats available

Comprehensive/Intelligent PoE solution

* 802.3af/at/bt - up to 90W

* 24V Passive PoE - up to 15W

* 54V Passive PoE - up to 90W

Dual redundant removable power supplies AC supplies

* 600W, 930W, & 1200W options

DC supplies

* Fully Isolated - Supports positive/negative input voltages

* 36V-72V

* 600W, 930W, & 1200W options

* Grounding lug nut located on front panel

All interfaces located on front panel

The cnMatrix series of fully managed switches delivers full Layer 2 and Layer 3 capabilities with enhanced access security. The cnMatrix series offers flexibility with SFP+ (10 Gbps) or SFP (1 Gbps) uplink ports. These switches come with a 3/5-Year Limited Lifetime Warranty.

* Feature to be included in a future release.
