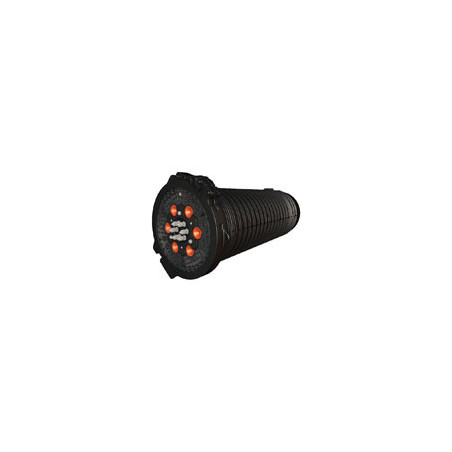

Apex X-2 Sealed Splice Closure, 6 Splace Trays. Please reference Data Sheet for exact configuration

Apex® X-2 Sealed Splice Closure

The Apex X-2 is a sealed splice closure designed for protecting optical fiber splices in both above- or below-grade applications in a butt configuration. The Apex X-2 is capable of up to 576 single fusion, 1152 mass fusion with standard ribbon, or 3456 (200 ìm, 1728 max for 250 ìm) mass fusion with ``rollable ribbon'' fiber types such as AFL's SpiderWeb Ribbon® (SWR®).

Cables are sealed by a unique wedge system spaced evenly around the circumference of the closure's base. Each cable seal is opened by a press-to-release lever and sealing is completed by actuating a single screw for each cable. Each cable is sealed individually, ensuring original craftsmanship when cables may be added at a later date. Up to 6 splice trays are attached and hinge off a central organizer. A plastic slack storage basket resides underneath the trays with ample tie down points for managing tube and fiber slack.

Features

* Individual cable sealing ports with tool-less release mechanism and gel sealing

* Hinging, lockable splice trays

* Plastic slack storage basket with optional segmented basket to separate ribbon and loose tube slack storage

* Six cable ports with up to six ground lugs

* Capable of up to 16 drop cables with an expressed distribution cable using multi-drop entry kits

* Splice trays with universal splice modules capable of holding single fusion, mass fusion and mechanical splices as well as other devices such as passive optical splitters

* Dome-to-base O-ring seal retained into dome to prevent loss or damage, but is still replaceable if necessary
