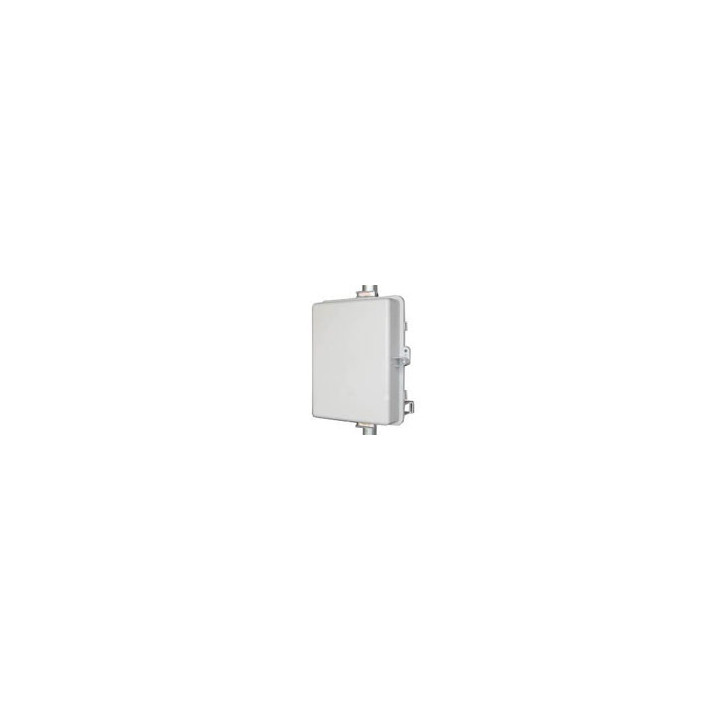

UPSPro Solar Ready Outdoor UPS System, 60W 200VA Polycarbonate Enclosure, 24V 18Ah Battery, 24V PoE. 24hr backup @ 4.5W

UPSPro® Series Outdoor UPS Systems with PoE

The UPSPro® series outdoor enclosures are designed for applications that require a backup power source in order to maintain uninterrupted service to customers. The enclosure is powered over a CAT5 network cable via Power over Ethernet (PoE) using a PoE Supply/Inserter (included). Features include an advanced battery charge controller to protect against over-charging or over-discharging of the valve regulated sealed lead acid AGM batteries. Enclosures have multiple ports for CAT5 cable, antenna cables/connectors or other cabling. They are vented to prevent residual buildup of hydrogen gas.

There is some space inside the enclosures for customer electronics such as controllers, wireless AP or CPE cards, sensors, inverters, etc. Equipment runs on battery power which isolates it from power line surges which is a main cause of outdoor equipment failure.

Models are equipped with a Solar Ready controller so they can also be powered using solar panels in addition to or instead of the PoE power supply.

Multiple configurations are available for 12V or 24V systems with various battery storage capacities.

A typical 250mW wireless access point with average power consumption of 3.5W will run 24 hours on a 8.5Ah battery at room temperature or 16 hours at -20 deg C.

Features

* Weatherproof, UV resistant, outdoor enclosures

* Powered over CAT5 cable using POE and/or Solar

* Generous interior space for customer electronics

* Wall or Pole Mounting

* Isolates Customer Equipment from Power Line Surges

* High Quality AGM VR Sealed Lead Acid Batteries

* Advanced battery charge controller protects against overcharge and over discharge
