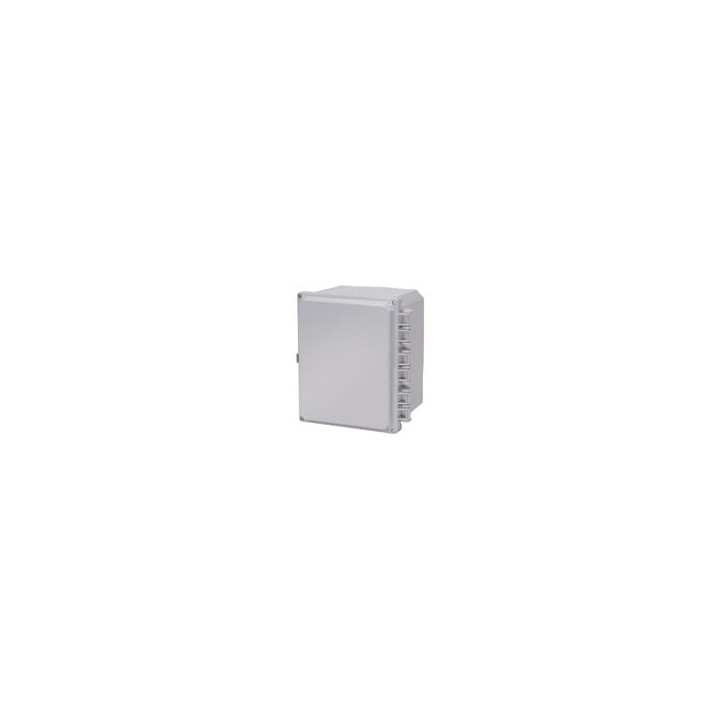

Winncom Breakout Box 10"x8"x4" with Opaque Hinge Cover/Latch/Feet, Surge Arrestor, Supports 2x Multimode Fibers, 1x DC, Nema4X,

Winncom Breakout Box WBBOX-1MMFLC-1DC-1SA

The Winncom Breakout Box provides a weather protection solution for Optical
Fiber and Power. The modular design is customizable to meet installation requirements.

This surge suppression equipment device has a maximum amperage of 5 kA. Our
electrical / lightning surge protection DC SPD rated at 5 kA on 48Vdc. The direct current surge protector
device is certified for IEC EN 60529. Transtector transient voltage suppressor for DC power devices
1104-11-002 product PDF datasheet with details of specifications and CAD drawing with
dimensions can be found on the website.

Protection from surge in this Transtector device is in the form of Silicon Avalanche
Suppression Diode (SASD). This DC SPD uses Silicon Avalanche Suppression Diode circuits to protect
electrical equipment from spikes in direct current power. Transient direct current power from surges such
as lightning or strong electrical changes are handled through Silicon Avalanche Suppression Diode
protection circuits in the 1104-11-002 SPD.

Features and Benefits

The design is applicable to a wide array of site specific requirements. The
Winncom Breakout Box includes DC surge protection and combined with the associated Hybrid cable
options, provides unmatched flexibility of electrical and environmental requirements.

* Lower Cost than other typical installations

* Fewer Cable runs from the switch to the radio(s)

* Easier Troubleshooting cable faults

* Standardization of installations

* Applicable to many types of configurations

* High Quality Components

* Protection: Class II Silicon Avalanche Suppression Diode by Transtector
