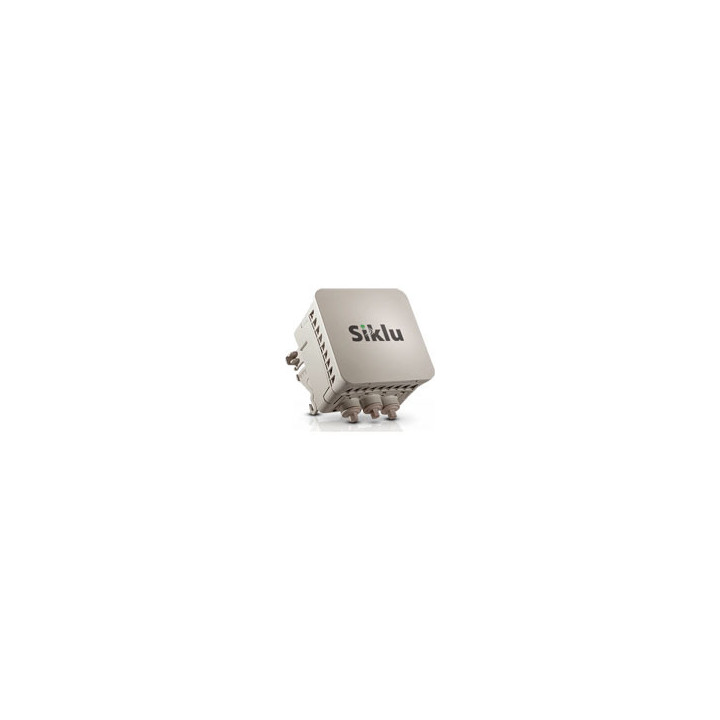

EtherHaul-614TX 57-71GHz V-band TDD PoE ODU with Intergated Antenna. 500Mbps aggregated, upgradable to 1Gbps, 3xGbE copper ports

EtherHaul[tm]-600/614 Series - Street-level Gigabit V-band Radios

Gigabit Throughput on Every Street

The EtherHaul[tm]-600 series delivers up to 1 Gbps in a form factor that is small enough and rugged enough to be deployed at street level on poles and light fixtures. With the EH-614, Siklu offers a model that can tune from 57GHz up to 71GHz covering 14GHz of spectrum in a single product. When operating in the upper 60GHz portion of the band, distances can be achieved that are as much as 50% further than operation in the lower bands due to the absence of oxygen absorption.

Interference-Free Operation and Scalable Deployments

The unlicensed 60GHz V-band spectrum avoids interference typically seen in unlicensed bands through a combination of means. With 7 to 9GHz allocated around the world and 14GHz in the US and the UK, there is ample spectrum for mass, dense deployments. The V-band is also characterized by pencil-thin beams, meaning a small amount of spatial separation is often enough isolation, allowing aggressive frequency reuse schemas of the 14 full-capacity non-overlapping channels.

Robust Carrier Class Construction

The all-weather IP-67 sealed radio guarantees carrier-grade performance under even the harshest weather conditions. Designed to operate in temperatures from -45°C to +55°C this product has been deployed around the world from Siberia to Texas. Carrier class specifications are backed up by an MTBF measured in decades not years.

Streamline Operations with Carrier Ethernet & Synchronization

The EH-600/614 both have MEF-compliant integrated Carrier Ethernet switches. This helps streamline operations with configurable service-aware QoS, bandwidth management and OAM. For mobile operators, optional built-in timing synchronization with Sync-E and 1588v2 ensures smooth performance over packet based backhaul networks. With a built-in switch, customers avoid additional boxes, power supplies etc and can leverage not only the layer 2 features but can be powered from a PoE out port on the radio.

Easiest Installation & Management

Virtually any installer can deploy the EH-600/614 with very little training or experience. Physical installation from opening the box to passing traffic can be as little as 15 mins when using pre-configurations loaded into the radio. Once deployed advanced configuration is available via an intuitive web GUI, while additional services may be remotely activated from a NOC. An IPERF integrated TCP and UDP load tester, and a spectrum analyzer, streamlines commissioning and troubleshooting.

Exceptional Value

With minimal deployment costs and virtually no maintenance, the EH-600 series minimizes Total Cost of Ownership (TCO) and provides a Return-On-Investment (ROI) often measured in months, providing an unbeatable price/Mb. A single part number supports both 57-67/71GHz (EH-600/EH-614) reducing TCO further with simplified inventory while benefiting from extended range achievable with the

upper 60GHz spectrum.

Field Proven Technology

EtherHaul[tm] is the world's bestselling millimeter wave radio. Tens of thousands of units have been deployed and are performing reliably in stringent weather conditions all over the globe. The EH-600/614 incorporates Siklu's integrated all-silicon technology, which increases reliability while reducing size and cost. The result is a small form factor radio with a proven 90-year MTBF and an unbeatable price/throughput.
