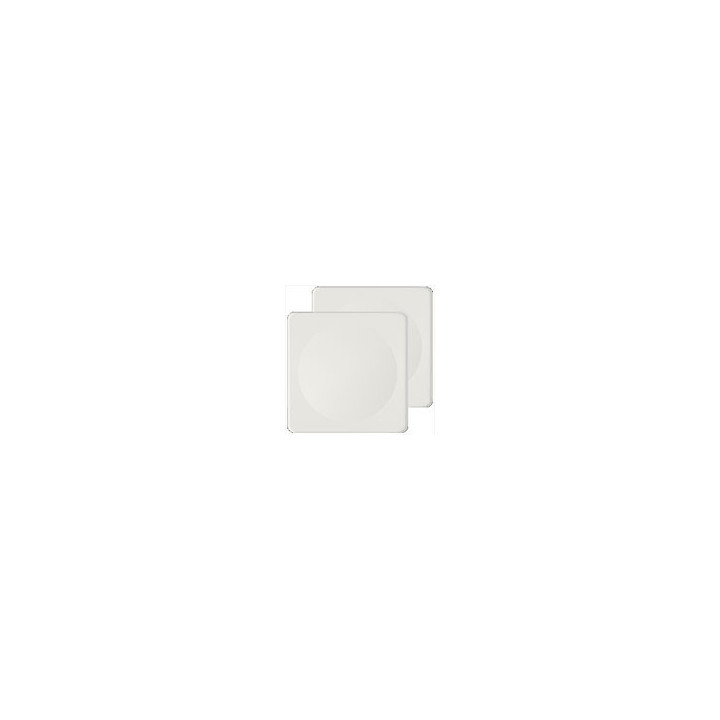

SX3-1020A-QB-US QuickBridge, Pair of Stratum SX3-1020A-US X3 5GHz All-purpose Units preconfigured as QB, MIMO 2x2, 1Gbps, 2x RP-

Stratum[tm] X3 5GHz

The Stratum X3 - 5GHz is a high-performance MIMO 2x2 point-to-point solution capable of throughput up to 1Gbps. The Stratum X3 is an excellent long-range backhaul solution.

Both integrated and external antenna options are available and enable long-range high-capacity secure over the air Ethernet transmission.

* Throughput up to 1Gbps

* Wide Band Radio - 5.150-5.850 GHz

* Triple 1Gbps Ethernet with POE in and out

* AES 128-bit encryption is upgradeable to 256-bit

* 20, 40 and 80 MHz channels.

* Full tilt and swivel mounting kit included

Flexible Antenna Options

The SX3-1021A is a flexible variant that includes an integrated dual polarity panel antenna, plus software selectable connectors for external antennas.

Model SX3-1020A is a connectorized unit purpose build for external dual polarity antennas where specific antenna patterns or gain adjustments are needed.

Advanced Interference Management

Proxim ClearConnect[tm] combines multiple dynamic technologies and delivers the best interference management solution.

Flexible and Secure Management Options

Management options include Proxim BlueConnect[tm]; our Bluetooth-enabled mobile management application; TLS 1.3 web GUI, SSH 2.0 CLI, and SNMP v3 for ProximVision Advanced or other network management solutions.

Rugged Reliability

Stratum X3 uses an IP67-rated metal enclosure to ensure years of reliable service in harsh environments, including high winds, high salt, and temperature extremes.
