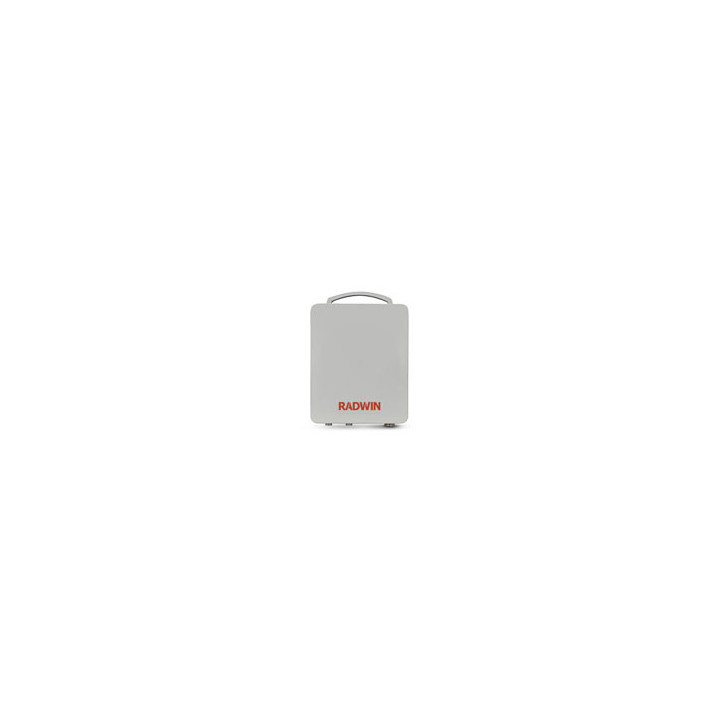

RWIN 2000 ODU D+series,5.x,Conn,Universa

RADWIN 2000 D+ Series

Delivering up to 750 Mbps Ethernet throughput, RADWIN 2000 D+ series is ideal for IP backhaul applications. RADWIN 2000 D+ series provides high spectrum efficiency by employing a QAM 256 modulation scheme.

RADWIN 2000 D+ Series radios deliver high performance even in a highly congested spectrum by utilizing RADWIN's enhanced interference mitigation techniques and D-CBS (Dynamic Channel Bandwidth Selection). D-CBS is a unique feature that selects the widest channel bandwidth (up to 80 MHz) yet with minimal interference to maximize link throughput.

RADWIN 2000 D+ radios deliver 350 Mbps in 40 MHz and support 20 and 10 MHz channel bandwidth. The solutions build on RADWIN's extensive experience in designing systems that commercially operate in nLOS/NLOS environments and overcome severe multipath conditions.

Highlights

- Net throughput: 750 Mbps

- Frequency availability: 4.9 - 6.0 GHz

- Long range - 120 Km / 75 miles

- Smart Dynamic Channel Bandwidth Selection optimized per channel conditions

- Advanced and proven air interface

- Seamless operation in NLOS and severe multipath conditions

- Radio frame synchronization enabling co-located radio deployments

- Compliance with FCC/ETSI/MII/WPC radio regulations

- Small form factor, ruggedized, IP-67 compliant
