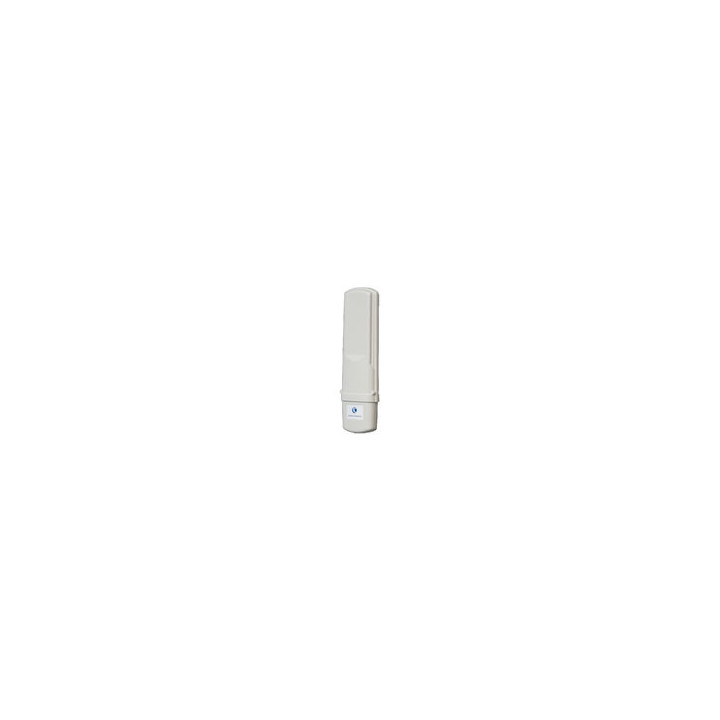

CAM PTP450 ExtendWarr,2 AddlYears,End

PTP 450

The Cambium Networks PTP 450 is our industry-leading Enterprise level point to point solution platform. This platform is ideal for enterprise services such as data, VoIP, video conferencing video surveillance and backup connection service. The solution can be cost-effectively deployed and configured within hours, providing robust connectivity in any types of environments.

Designed for fixed outdoor applications, the PTP 450 platform is optimized for reach, reliability and throughput. It features the most resilient and effective set of wireless broadband technologies in the marketplace.

The PTP 450 is available in multiple bands including 5 GHz, 3.5 GHz licensed and 3.65 GHz lightly licensed. This variety of bands gives enterprises and service providers flexibility to choose the most effective solution for their network.

Main Differentiators

- Optimized for Enterprise PTP Access

* Up to 125 Mbps capacity

* Quality of Service (QoS)

* VLAN Management

* Packet Filtering

The PTP 450 is a perfect cost-effective solution for multi-play bandwidth-intense services where service level agreements (SLAs) must be maintained.

- Carrier-Grade Reliable Hardware by Cambium Networks is constructed from high quality industrial components; it is out door-rated and rigorously tested to satisfy the most difficult environmental conditions. With 40-year MTBF, our equipment standards are unsurpassed in industries requiring fixed wireless broadband.

- Simple, Easy Deployment assessment is provided by the LINK Planner tool. LINKPlanner enables network designers to accurately predict the PTP 450 capacity by selecting the precise end points on a map. A variety of what-if scenarios can then be evaluated (antenna choice, channel bandwidth, elevation, etc.) to precisely plan the network prior to deployment. RF prediction tool developed by Cambium Networks designed to optimize the performance of a link prior to deployment.

Powerful Features

The Cambium Networks PTP 450 point to point solution is designed for connecting enterprise customers to the network quickly while meeting service level agreements with reliable consistent throughput.

Low latency of 3 - 5 ms effectively supports video and VoIP services. Flexible channel width (5, 10 and 20 MHz) allows users to select the most effective channel width for the current network environment. 256-QAM modulation rate offers the unique ability to use the PTP 450 platform for services requiring fast and reliable transmission.

OFDM 2x2 MIMO A and B technology allows dual stream operation for most channel conditions, guaranteeing successful deployment of wireless networks in challenging environments.

The PTP 450 can be fitted with either the CLIP (5 GHz only) or the reflector dish to extend the range by increasing the link budget. Multiple PTP 450s can be mounted on a single tower and synchronized with the Cambium GPS synchronization solutions.
