• HTG Large Extruded Aluminium Housing for Thermal Camera 14"

HTG Large Extruded Aluminium Housing for Thermal Camera 14" (360mm) w/ Sunshield and Heater, 110VAC/230VAC (CE Rated, Non-UL), 2

Brand Videotec
Part Number HTG37K1A000

Quick look

Product Types: Environmental Enclosures
Product Features: Outdoor

1-888-WINNCOM / sales@winncom.com

Get your business the equipment it needs with LEAF.

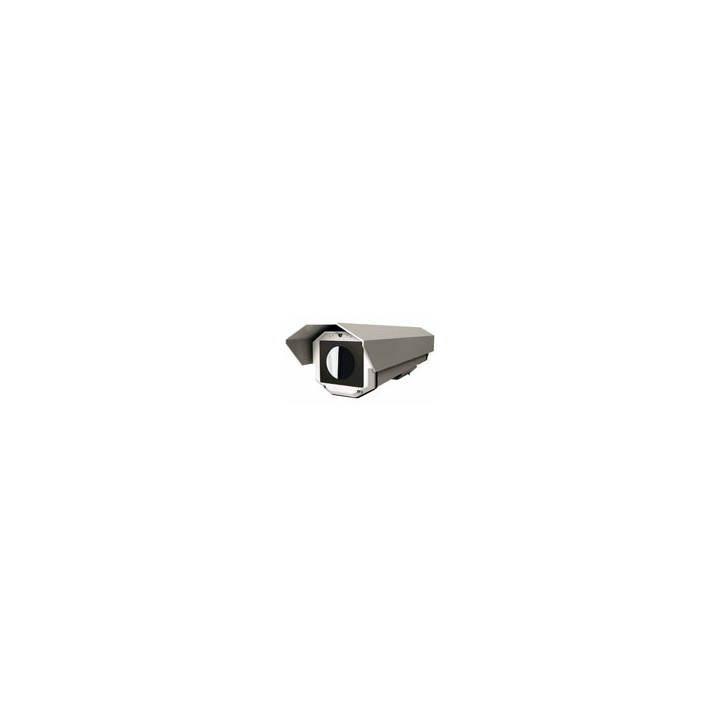

HTG - Large extruded aluminum housing for thermal cameras


- Germanium glass window


- Built-in aluminum


- Indoor/outdoor


- Supplied with sunshield and 230Vac heater


- Solid and reliable


- Weatherproof Standard IP66/IP67


The HTG housing is a weatherproof housing for outdoor installations, equipped with a Germanium viewing window designed for Thermal Imaging Cameras installations. The clear Germanium glass composition with remarkable properties covers transmission from 7.5 to 14ìm IR range with the best optical quality.


This housing is constructed from aluminum. Its weatherproof feature is ensured by the extruded aluminum sunshield, the EPDM-rubber end-gasket between the end-cover plates and the body, and three cable glands with their specific gaskets. The installation and adjustment of the camera are made easier due to the ability to remove the body, leaving the internal slide in working position for an easy operation.


Available accessories: sunshield, heater kit, camera power supply, weatherproof junction box, wiper and washer. These accessories are supplied as a simple plug-in kit for an easy installation. It can be installed with cable sheaths, instead of regular cable glands using the junction box for the wiring harness. The HTG housing can be utilized for a variety of applications and it can be coupled with the Pan & Tilt PTH900 series.


Data Sheet

Product Types Environmental Enclosures
Product Features Outdoor
