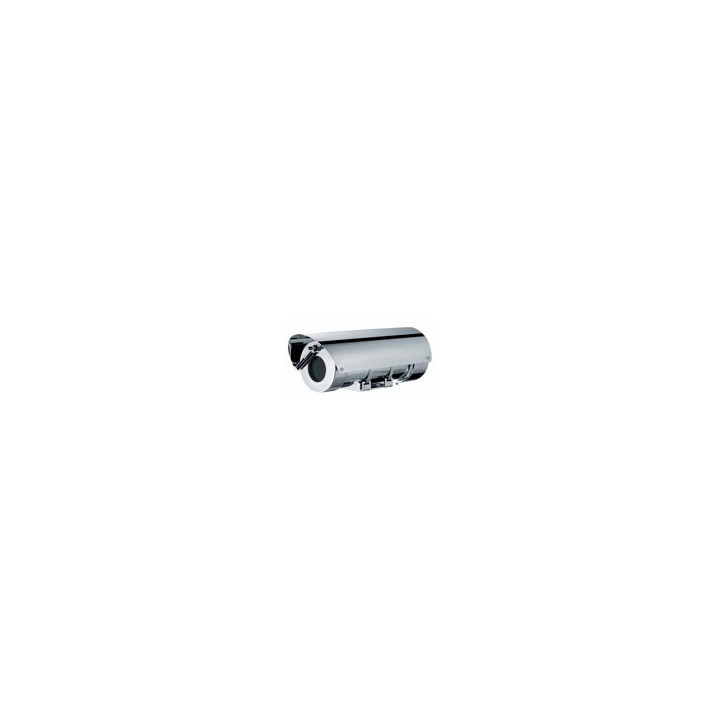

• Maximus MHX Explosion-proof Stainless Steel Housing 120VAC

Maximus MHX Explosion-proof Stainless Steel Housing 120VAC with sunshield, built-in wiper and heater

Brand Videotec
Part Number MHX3CS000A

Quick look

Product Types: Environmental Enclosures
Product Features: Outdoor

1-888-WINNCOM / sales@winncom.com

Get your business the equipment it needs with LEAF.

MAXIMUS MHX - Explosion-proof Stainless Steel Camera


Main Features


- Made of AISI 316L electropolished stainless steel


- Integrated Day/Night camera 10x, 1/3"


- 2 ¾'' NPT threaded holes for use of cable glands or conduit


- Integrated telemetry receiver for version with wiper


- Sunshield and heater included


- IP66/IP67


Options


- Housing without camera


- Wiper


Description


These explosion-proof cameras of MAXIMUS series have been certified and designed to meet the strictest standards regarding installation in potentially explosive environments, given the presence of gas and flammable dusts.


The MAXIMUS range ensures excellent performance for monitoring critical processes in areas with risk of explosion, such as refineries, gas pipelines, oil tankers, offshore platforms, industrial processes, chemical industries, etc.


Equipped with heating, the housing has the same installation and operating temperatures, comprised between -40° C and + 60° (-40°F / +140°F).


In the version with wiper, MHX is equipped with an integrated telemetry receiver that allows, through the RS485 serial interface, to receive data from the remote control for the activation of the wiper / washer and for switching an eventual external illuminator (or controlled from the Day \ Night camera switch).


The wiring is made easier thanks to the removable connectors on the circuit board.


The control board, with removable connectors, is also equipped with an input for the wiper activation through a dry contact.


The housing can eventually be controlled by VMS through a video encoder with RS485 serial port.


Data Sheet

Product Types Environmental Enclosures
Product Features Outdoor
