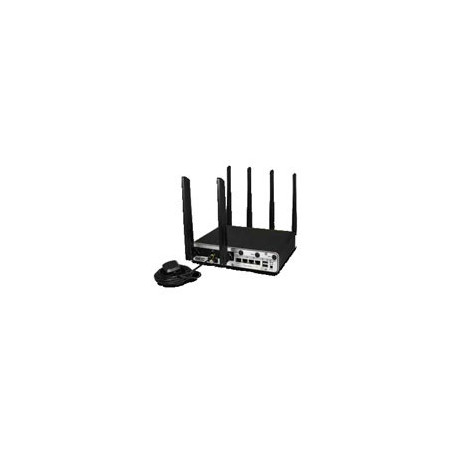

BEC MX-1200 4G LTE Multi-Carrier Modular Rugged Vehicle / Industrial Router, CAT6, Works with MX-100Ux to add LTE, 802.11n/ac Du

MX-1200 Series - 4G/LTE Multi-Carrier Modular Router

BEC MX-1200 4G/LTE Multi-Carrier Router is a versatile, feature-packed 4G/LTE Router in rugged design and is compatible with BEC MX-100U cellular modem plug-in for an immediate mobile network expansion support 2 SIMs for carrier failover and failback and embedded GPS with concurrent-multi-GNSS engine for GPS or GLONASS. This platform comes with 4-port Gigabit Ethernet switch, up to two (2) confi-gurable LAN/WAN ports, two (2) multi-purpose USB 2.0 hosts, carrier-grade 802.11ac dual-band WIFI access point and Hotspot with captive portal, enterprise routings, secured VPNs, vehicle ignition sensing, robust -firewall security and cloud-based remote device management. MX-1200 is designed to support a wide range of applications and vertical machine-to-machine (M2M) market segments and improve business continuality.

Mobile and Fixed Broadband Services Ready

MX-1200 platform supports two (2) SIMs for carrier redundancy or seamless failover (with MX-100U) between carrier networks and is equipped up to two (2) versatile Gigabit Ethernet LANs/WANs for wireline connection such as Fiber (FTTH), Cable or DSL with speeds up to 1000Mbps. Using BEC WAN Management in the Web GUI to manage and ensure uninterrupted Internet services by assigning failover to specific WAN interfaces, setting up WAN load balance to smoother traffic to ensure no drops on latency-sensitive application and data.

Secure Network Privacy Protection

With hardware-based VPN engine, MX-1200 supports simultaneous and multiple VPN remote and/or site-to-site connection access without network performance degradation. All online data transmissions including phone call, database access, etc. are encrypted and protected via the VPN technologies offered by the MX-1200 including PPTP, IPSec, L2TP, GRE, OpenVPN and compatible with most major servers and platforms by establishing private tunnels and enabling office environment for Remote/Branch employees to work without being present in the headquarter office to ensure business continuity.

Maximized Wi-Fi Speed and Coverage

With the next wireless generation, 802.11ac, integrated in the MX-1200, the router delivers fast Wi-Fi speeds of up to 1200Mbps. The MX-1200 supports a link rate up to 300Mbps in 2.4GHz frequency range & 867Mbps in 5GHz range and is also backward compatible with existing 802.11 a / b / g / n wireless equipment in the network. The Wireless Protected Access (WPA-PSK/WPA2-PSK) and Wireless Encryption Protocol (WEP) features enhance the level of transmission security and access control over Wireless LAN. MX-1200 also supports the Wi-Fi Protected Setup (WPS) standard for easy and secure establishment of a wireless home network. If the user's network requires wider coverage, the built-in Wireless Distribution System (WDS) repeater function expands the wireless network without needing any external wires or cables.
