cnPilot Enterprise E501S Outdoor 802.11ac Wave 1 Dual Band Wi-Fi Access Point with 90-120 degree Integrated Sector Antenna, PoE

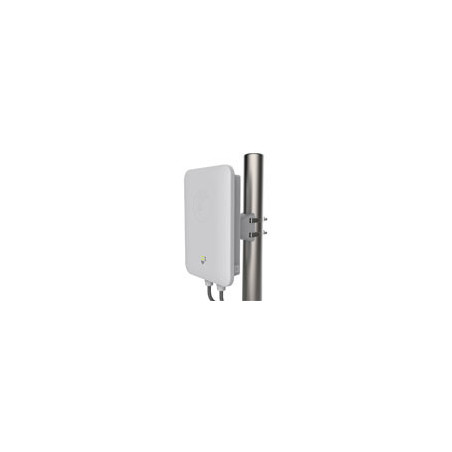

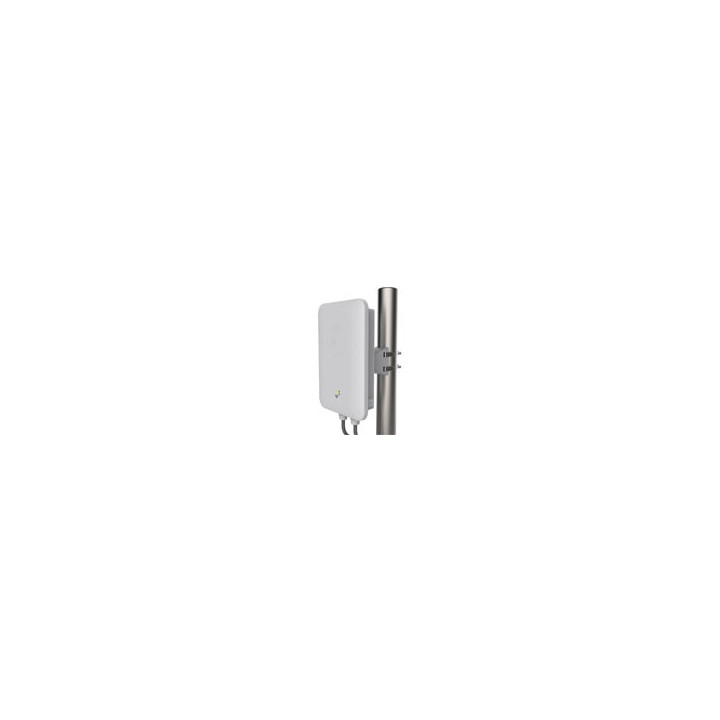

cnPilot[tm] E501S - IP67 802.11ac 90-120° Outdoor Sector Access Point

Perfect for demanding, high density applications and longer range coverage across large areas, including: industrial or education campuses, enterprise and hospitality complexes, public parks and recreational areas, or just about any demanding outdoor environment requiring cost-effective, controller managed WLAN access points.

The cnPilot Wi-Fi Network Highlights

Operational superiority - The E501S with integrated sector antenna supports 256 client associations, 16 SSIDs, WPA-2 encryption, Dynamic VLANs, DFS channels, Access Control Lists (ACL), and more. The 802.11ac E501S is the essential workhorse for today's demanding, high density outdoor Wi-Fi networks.

High performance Wi-Fi network - All cnPilot's Enterprise access points (APs) support features like controller-less roaming, dynamic channel selection, automatic transmit power control, band steering, and more - essential features for easy Wi-Fi operations.

Mesh - Rapidly setup multi-hop mesh networks either dedicating one radio (e.g.: 5 GHz) for mesh backhaul, or using both bands for client access simultaneously.

Wireless Backhaul Integration - the aux PoE port on the E501S offers PoE out, eliminating the need for a second power line - perfect for powering on a standard 802.3af camera, or on Cambium's PMP 450 or ePMP backhaul subscriber modules (SMs) for wireless backhaul enabled Wi-Fi hotspots.

Resilience - Dual on-board Active/Standby memory banks ensure higher availability. The E501S can store two versions of the software - defaulting to a working operational software if needed - reducing the likelihood of site visits and increasing network up-time.

DESIGNED FOR THE OUTDOORS

* 802.11ac, 256 users, 16 SSIDs

* 90°~120° coverage

* 23 dBm front-back ratio

* UV rated IP-67 enclosure

* Operating Temp: -30°C ~ +60°C

* Electrical heater for cold start

* Ruggedized - ESD protection, industrial- grade components

* Packaged with wall mount brackets

* Special LTE coexistence filters

* Light weight ~ 1Kg

cnMAESTRO - WI-FI CONTROLLER

* Guest Access: Custom splash pages, vouchers, social login

* Zero-touch provisioning

* Inventory tracking

* Map location

* Monitoring: key stats, alarms

* Mass (bulk) upgrade

* Integrated troubleshooting: Wi-Fi APs, Clients & Cambium SMs

* Controller: Cloud or Virtual On-premises (NOC) controller
