CAM cnPilot Outdoor 11ac Wave2 AP,FCC

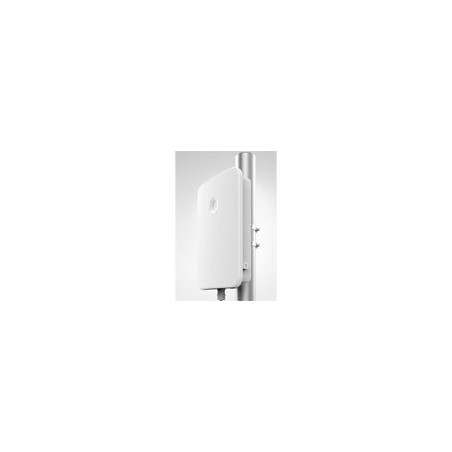

cnPilot e700 Outdoor Omni Gigabit 802.11ac Wave 2, 8 dBi Outdoor Access Point

Operational superiority - IP67 weather resilient Outdoor Access Point (AP) with 512 max concurrent client associations, 16 SSIDs, WPA-2 encryption, Meshing, Dynamic VLANs, DFS channels, Access control lists (ACL), zero touch provisioning and more - the 802.11ac wave2 powered e700 is perfect for today's demanding high density outdoor Wi-Fi networks.

High performance Wi-Fi - Standards based beamforming, on 5 GHz over a 4x4 Tx/Rx antenna array, can steer beams to the target client device delivering superior performance under high interference RF environments in both downlink and uplink* directions. Enterprise grade controller-less roaming, dynamic channel selection, automatic transmit power control, and more such cnPilot platform features ensure a high grade superior Wi-Fi network.

Mesh - Rapidly setup multi-hop mesh networks either dedicating one radio (e.g.: 5 GHz) for mesh backhaul, or using both bands for simultaneous client and mesh access.

Wireless Backhaul Integration - Roll out Wi-Fi networks rapidly with Cambium's wireless backhaul powered from the aux PoE Out port on the e700 eliminating the need for a second power line. The aux PoE Out port can also power an 802.3af camera when security monitoring is needed near the hotspot.

Resilience - Dual on-board Active/Standby memory banks ensure higher availability. The e700 can store two versions of the software and if needed fall back to a working operational software, reducing the likelihood of site visits and increasing network up-time.

DESIGNED FOR THE OUTDOORS

* 802.11ac, 512 users, 16 SSIDs

* Omni antenna

* UV rated IP-67 enclosure

* Max Operating Temp range: -40°C ~ +65°C

* Operating humidity: 10% to 95%

* Electrical heater for cold start

* Ruggedized; ESD protection, Industrial grade

* Packaged with wall mount brackets

* Special LTE resilience filtering

* 315 x 215 x 66 mm | 3.174 lbs (1700 gms)
