• Atom OD15 3.5GHz 18 dBi Outdoor LTE CPE

Atom OD15 3.5GHz 18 dBi Outdoor LTE CPE, CAT15, 2T4R, PoE, 18 dBi Integrated Antenna, Bands 42/43/48. CBRS and Part 96 compliant

Brand Baicells
Part Number EG8015G-M11

Quick look

Product Types: CPE
Product Features: Integrated Antenna | Outdoor
Frequencies: 3.5 GHz | 3.65 GHz
$379.00
Pricing may be subject to tariffs.

1-888-WINNCOM / sales@winncom.com

Get your business the equipment it needs with LEAF.

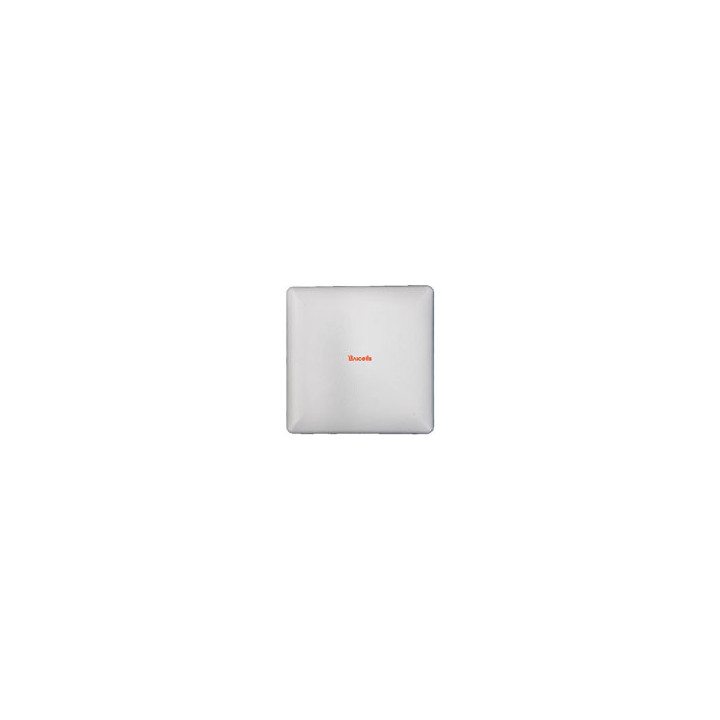

Atom OD15 EG8015G Outdoor CPE


The Baicells Atom OD15/OD15 EUD Outdoor High-Gain CPE provides superior performance to bring broadband data and voice services to end-users. It operates on standard LTE TDD, supports multiple bands, and complies with 3GPP Release 12 CAT15 standards.


The Atom OD15 is available in two variants: The Atom OD15, which requires SAS connectivity and CPI certification, and the Atom OD15 EUD, which does not require SAS connectivity or CPI certification.


The CPE design incorporates UL 2x2, DL 4x4 MIMO, and RX diversity, enabling improved cell coverage and high-speed wireless communications. It also supports Carrier Aggregation (CA), which increases data rates and improves overall network performance.


This product comes with a standard product warranty; an extended warranty is available.


FEATURES


- Supports LTE TDD Bands 38/40/41/42/43/48


- Complies with 3GPP Release 12 Cat15 standards


- 1000 Mbps Ethernet interface


- Peak data rate of up to 580 Mbps DL and 30 Mbps UL @ 20 MHz (2:7) in a controlled environment


- Supports MCS DL QPSK/16 QAM/64 QAM/256 QAM and UL QPSK/16 QAM/64 QAM


- Built-in LTE directional antenna, 4x4 MIMO


- Power supply with PoE


- GUI-based local and remote web management


- TR069 network management protocol support


- Cell lock, SIM lock, and pin lock


- User-friendly LED status indicators


- Pole- or wall-mounted


Note: Features may vary based on model or region.


Data Sheet

Product Types CPE
Product Features Integrated Antenna | Outdoor
Frequencies 3.5 GHz | 3.65 GHz
