• SX3-1021A-WD, Stratum X5 5GHz All-purpose Uni (BSU single or

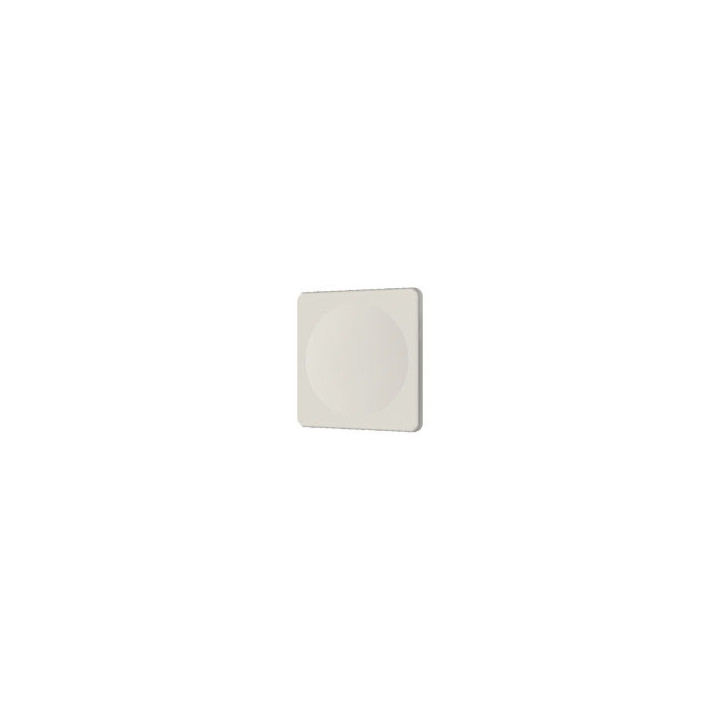

SX3-1021A-WD, Stratum X5 5GHz All-purpose Uni (BSU single or SU), MIMO 2x2, 1Gbps, Integrated Dual Pol 10 degree Antenna and 2x

Brand Proxim Wireless
Part Number 906-00014

Quick look

Product Features: ETSI | Integrated Antenna | Outdoor | Up to 1 Gbps
Frequencies: 4.9-5.8 GHz | 5.2 GHz | 5.4 GHz | 5.8 GHz
$1,600.00
Pricing may be subject to tariffs.

1-888-WINNCOM / sales@winncom.com

Get your business the equipment it needs with LEAF.

Stratum[tm] X3 5GHz


The Stratum X3 - 5GHz is a high-performance MIMO 2x2 point-to-point solution capable of throughput up to 1Gbps. The Stratum X3 is an excellent long-range backhaul solution.


Both integrated and external antenna options are available and enable long-range high-capacity secure over the air Ethernet transmission.


* Throughput up to 1Gbps


* Wide Band Radio - 5.150-5.850 GHz


* Triple 1Gbps Ethernet with POE in and out


* AES 128-bit encryption is upgradeable to 256-bit


* 20, 40 and 80 MHz channels.


* Full tilt and swivel mounting kit included


Flexible Antenna Options


The SX3-1021A is a flexible variant that includes an integrated dual polarity panel antenna, plus software selectable connectors for external antennas.


Model SX3-1020A is a connectorized unit purpose build for external dual polarity antennas where specific antenna patterns or gain adjustments are needed.


Advanced Interference Management


Proxim ClearConnect[tm] combines multiple dynamic technologies and delivers the best interference management solution.


Flexible and Secure Management Options


Management options include Proxim BlueConnect[tm]; our Bluetooth-enabled mobile management application; TLS 1.3 web GUI, SSH 2.0 CLI, and SNMP v3 for ProximVision Advanced or other network management solutions.


Rugged Reliability


Stratum X3 uses an IP67-rated metal enclosure to ensure years of reliable service in harsh environments, including high winds, high salt, and temperature extremes.


Data Sheet

Product Types Base Station (AP) | CPE | PtP Radio Module
Product Features ETSI | Integrated Antenna | Outdoor | Up to 1 Gbps
Frequencies 4.9-5.8 GHz | 5.2 GHz | 5.4 GHz | 5.8 GHz
