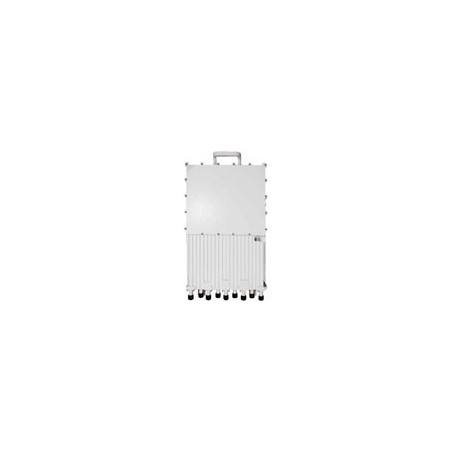

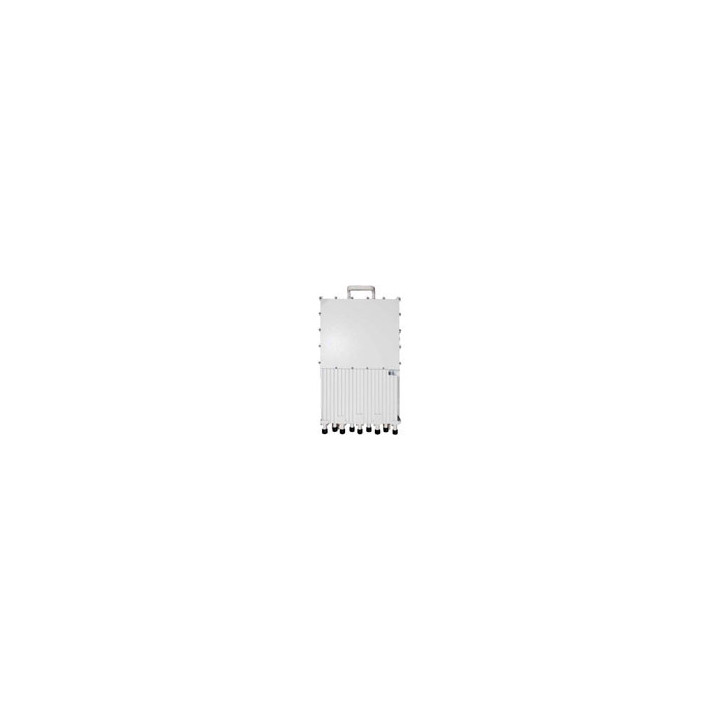

Nova846N 2.5GHz 5W Outdoor TDD eNodeB Base Station - LTE Release 15, 5 Watt (37 dBm), Bands 41, Single Carrier with HaloB

Nova 846 Outdoor TDD eNB

The Baicells Nova846 is an advanced two-carrier outdoor eNodeB (eNB) that is compliant with 3GPP LTE TDD technology. This 8x5W eNB is capable of operating in Carrier Aggregation (CA) mode or Dual Carrier (DC)/split mode.

In CA mode, contiguous or non-contiguous channels are aggregated to provide up to 40 MHz bandwidth. This essentially doubles the downlink capacity when the CA mode is used with all Cat6/7 user equipment.

In DC mode, each carrier is treated as an independent cell, supporting 128+128 users, and each supporting 20 MHz bandwidth. Using a Nova846 in DC mode simplifies and streamlines the deployment of split sectors.

Additionally, HaloB (an embedded MME option) is a standard feature in the base software. The Baicells patented HaloB solution migrates the necessary core network functions to the eNB.

The product comes with a standard one-year warranty; extended warranty is available.

FEATURES

Note: Features may vary based on model or region.

* Standard LTE TDD Bands 41 and 48

- Customization may be requested; contact sales_na@baicells.com.

* Compact design, easy to deploy

* Supports GPS synchronization

* 128+128 concurrent users, 256+256 RRC users

* Peak rate (up to): DL 440 Mbps with 4x4 MIMO Carrier Aggregation (CA) mode, UL 28 Mbps

* GUI-based local and remote Web management

* Highly secured with equipment certification against potential intrusion risk

* TR-069 network management interface support

* Embedded HaloB ("lite" EPC) solution

* Supports Citizens Broadband Radio Service (CBRS)

* Plug-and-play with self-organizing network (SON) capabilities

* IoT with all standard LTE Evolved Packet Core (EPC)

* Lower power consumption, which reduces OPEX, can be powered easily by the Baicells compact outdoor SmartUPS EPB83521 and EPB93531 series

* Built-in DHCP server, DNS client, and NAT functionality, providing strong high-speed routing
