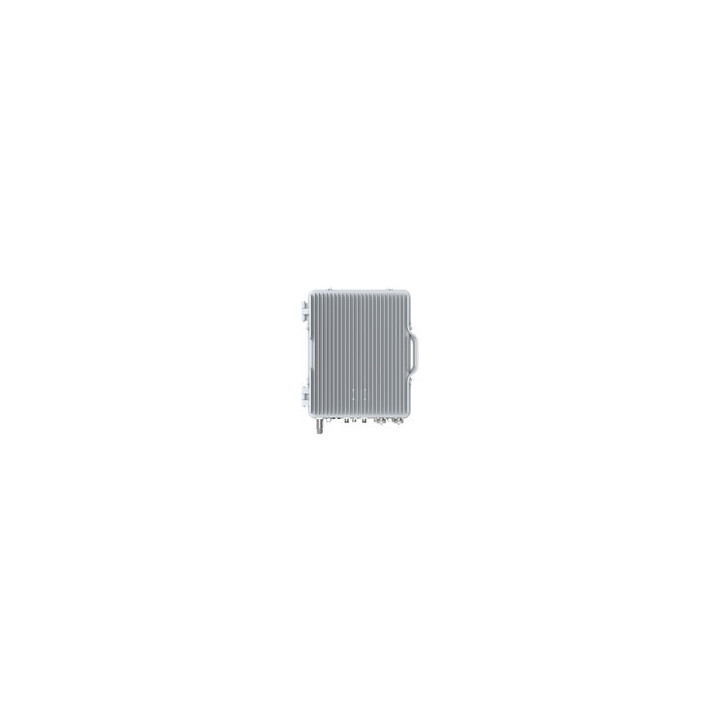

• InterCell 10 B38+B39 LTE Base Station

InterCell 10 B38+B39 LTE Base Station, 2x 10W, Dual Carrier, LTE TDD Bands B38 (2570-2620MHz) + B39 (1880-1920MHz), 2x GLAN, 2x

Manufacturer MikroTik
Part Number P02003-B38B39-10W
Out of stock

Quick look

Product Types: Base Station (AP)
Product Features: Outdoor
Frequencies: 1.7-2.2 GHz | 2.3-2.7 GHz | 2.5 GHz

1-888-WINNCOM / sales@winncom.com

Available Monday through Friday, from 8:00 AM to 5:00 PM EST.

Intercell 10 B38+B39


Product code: P02003-B38B39-10W


The Intercell 10 B38+B39 is an outdoor TDD-LTE dual carriers base station with 2*(2*10W) output power (each carrier supports 2x2 MIMO with 10W output each RF channel). The unit is compact, lightweight, and easy to deploy. The Intercell 10 B38+B39 offers excellent performance, helping operators provide better coverage and higher capacity with minimal effort.


Features


* Standard TDD bands 38 and 39


* Peak data rate of each carrier (20 MHz)


-DL 140Mbps (256QAM, SF2)


-UL 30Mbps (64QAM, SF1)


* Peak data rate of carrier aggregation (20 MHz)


-DL 280Mbps (256QAM, SF2)


-UL 60Mbps (64QAM, SF1)


* Maximum 2 * 192 RRC connected users and 2 * 96 active users


* 5/10/15/20 MHz operation bandwidth


* All IP based backhaul, many IP backhaul methods can be used, including RJ45 Ethernet, SFP


* Plug-and-play with SON features, including self-configuration/self-optimization/self-healing


* High transmission power to extend NLOS coverage, low power consumption to save OPEX.


Data Sheet

Product Types Base Station (AP)
Product Features Outdoor
Frequencies 1.7-2.2 GHz | 2.3-2.7 GHz | 2.5 GHz
