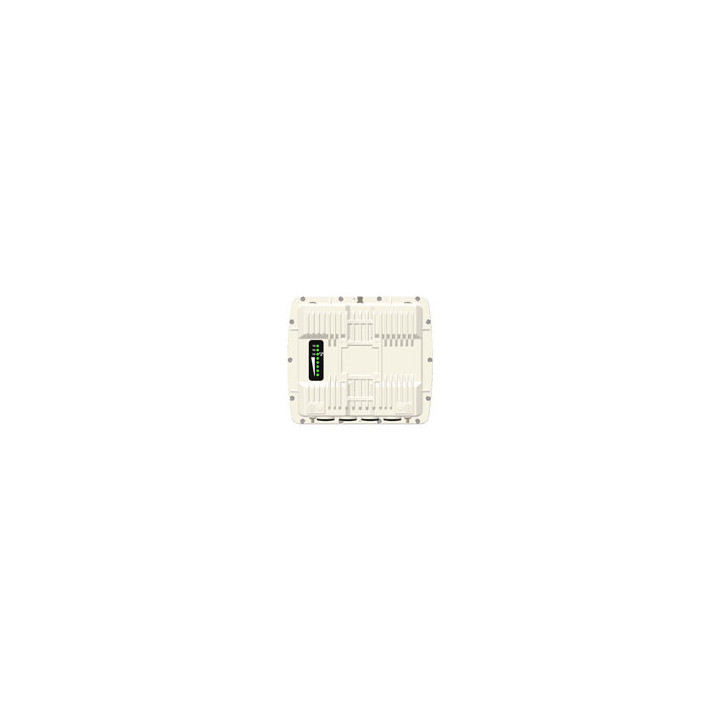

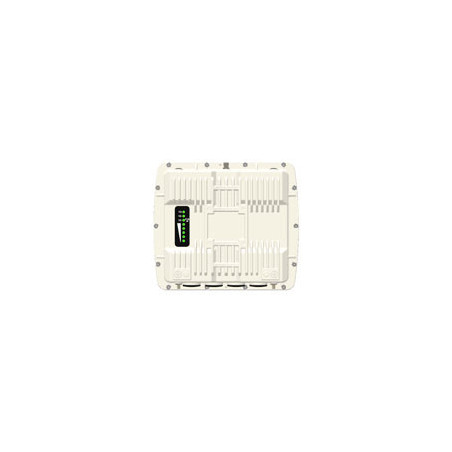

SX3-1020A-WD, Stratum X3 5GHz All-purpose Unit (BSU single or SU), MIMO 2x2, 1Gbps, 2x RP-SMA connectors, WD PoE. Requires SX3-1

Stratum[tm] X3 5GHz

The Stratum X3 - 5GHz is a highly efficient and secure MIMO 2x2 outdoor wireless solution capable of throughput up to 1 Gbps.

Stratum X3 models are multi-purpose radios, designed to operate in each of the following modes:

* Point-to-Point endpoint

* Point-to-Multipoint CPE

* Point-to-Multipoint Base Station (2-64 client support requires a license upgrade)

Both connectorized and integrated antenna models are available, and all models are housed in IP67-rated metal enclosures and operate from -40 to +140oF.

* Wide Band Radio - 5.150-5.850 GHz

* AES 128-bit encryption is upgradeable to 256-bit

* 20, 40 and 80 MHz channels

* Full tilt and swivel mounting kit included

Advanced Interference Management

To achieve peak performance in challenging RF environments characterized by dense unlicensed radio usage and significant interference, the Stratum X3 - 5GHz utilizes our highly efficient WORP® (Wireless Outdoor Router Protocol).

Proxim ClearConnect®, a crucial component of WORP®, provides effective interference management.

To learn more about Proxim ClearConnect[tm] follow this link: https://rb.gy/hxcl2s.

Security

Over the air transmission is secured via 128-bit AES encryption, with an option to upgrade to 256-bit when ultra-high security is desired.

Rugged Reliability

Stratum X3 features a robust IP67-rated metal enclosure designed to provide dependable performance over many years, even in severe conditions including strong winds, high salt exposure, and extreme temperatures.

Proxim WORP®

WORP® is a dynamic, asynchronous protocol designed to optimize the performance of outdoor wireless point-to-point and point-to-multipoint wireless links. WORP's asynchronous nature allows the uplink and downlink to adapt to network traffic demands dynamically.

In a WORP® powered network, a base station autonomously handles on-demand bandwidth allocation and quality of service (QoS) settings based on the specific requirements of each client within the network.

To learn more about the benefits of WORP® in point to point and point to multipoint networks click here https://rb.gy/zeu6cz.

Flexible and Secure Management Options

Management options include Proxim BlueConnect[tm]; our Bluetooth-enabled mobile management application; TLS 1.3 web GUI, SSH 2.0 CLI, and SNMP v3 for ProximVision Advanced, and other network management solutions.

Antenna Options

The SX3-1021A includes an integrated dual polarity 22dBi 10° panel antenna, with the added flexibility of software selectable connectors for external antennas.

Model SX3-1020A is a connectorized unit purpose built for external dual polarity antennas where specific antenna patterns or gain adjustments are needed.

The SX3-1029B is point to multipoint base station with an integrated 2x2 MIMO 16 dBi dual Polarized 90 degree Sector Antenna.
