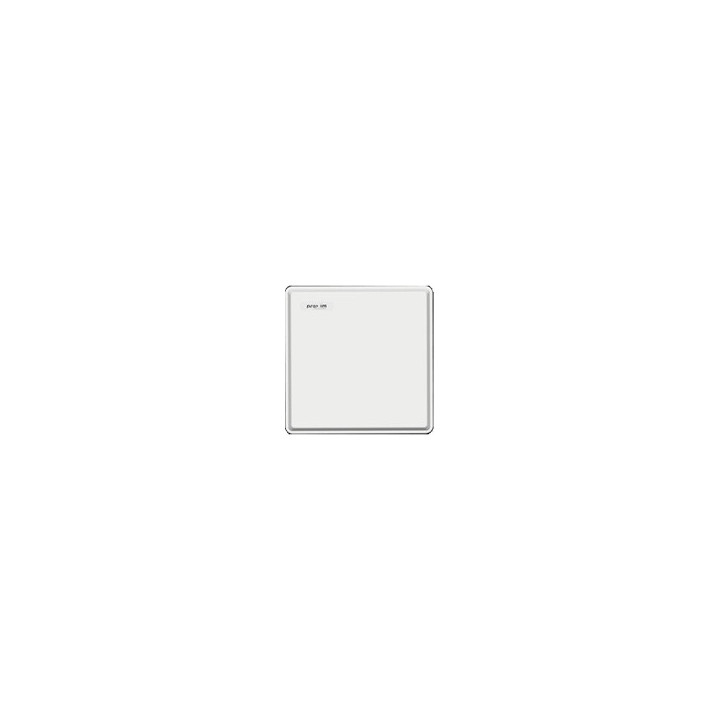

SX3-202xB-AES256-UPG, Stratum X3 6GHz Base Station Unit AES256 License Upgrade

Stratum[tm] X3 6GHz

The Stratum X3 - 6GHz is a highly efficient and secure MIMO 2x2 outdoor wireless solution capable of throughput up to 1 Gbps.

The Stratum X3 offers 80, 40, & 20MHz channels, operates between 5.925 and 7.125 GHz. and comes standard with 128 bit over the air encryption (256bit upgrade available).

Designed to enable fast, license free installation, the Stratum X3 offers the added flexibility of multi-purpose radios, designed to operate in each of the following modes:

* Point-to-Point endpoint

* Point-to-Multipoint CPE

* Point-to-Multipoint Base Station (2-64 client support via license upgrade)

Automatic Frequency Coordination (AFC)

Automated Frequency Coordination (AFC) is an advanced cloud-based system for coordinating spectrum sharing and is required for outdoor operation in the 6-GHz band in both the USA and Canada.

The Stratum X3 comes with a pre-loaded AFC service license and an external GPS antenna to enable the internal GPS module required for AFC positioning.

Flexible Antenna Options

The SX3-2021A is a flexible variant that includes an integrated dual polarity panel antenna, plus software selectable connectors for external antennas.

Model SX3-2020A is a connectorized unit purpose build for external dual polarity antennas where specific antenna patterns or gain adjustments are needed.

The SX3-2029B is point to multipoint base station with an integrated 2x2 MIMO 16 dBi dual Polarized 90 degree Sector Antenna.

Advanced Interference Management

Proxim ClearConnect[tm] combines multiple dynamic technologies and delivers the best interference management solution.

Rugged Reliability

Stratum X3 uses an IP67-rated metal enclosure to ensure years of reliable service in harsh environments including high windsvand high salt conditions. The units are rated to operate between -40° to 140°F.

Flexible and Secure Management Options

Management options include Proxim BlueConnect[tm]; our Bluetooth-enabled mobile management application; TLS 1.3 web GUI, SSH 2.0 CLI, and SNMP v3 for ProximVision Advanced or other network management solutions.
