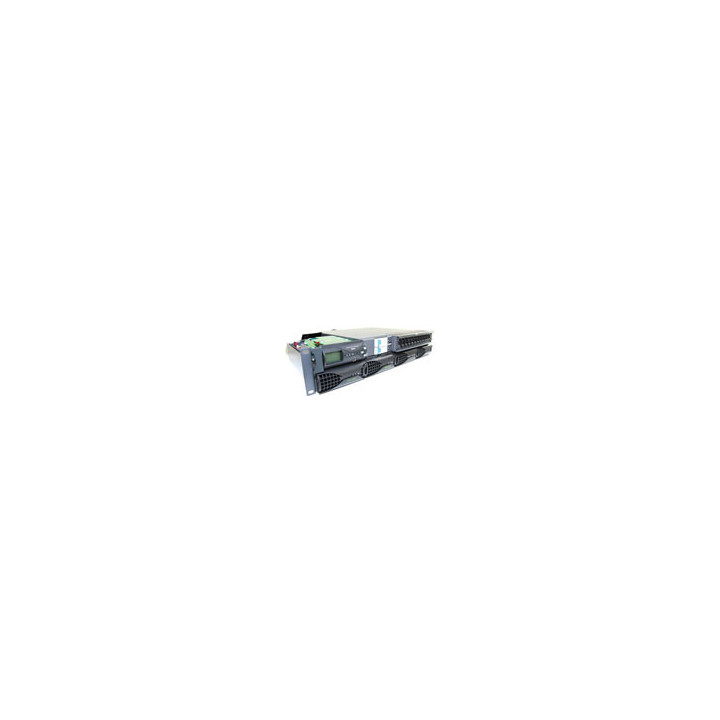

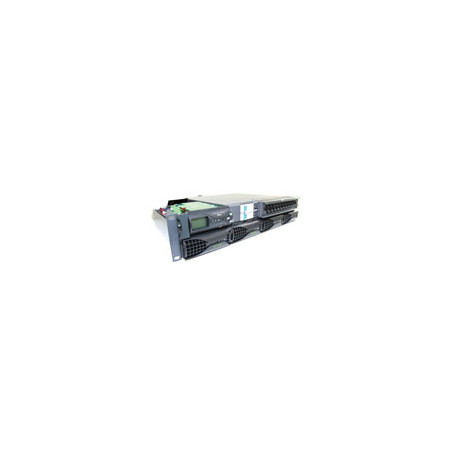

Centurion III Power System Rectifier Shelf, handles 2 Rectifiers/Converters, 12VDC, 24VDC and/or -48VDC, up to 4000 watt, 2U Rac

Centurion III Shelf with DC-DC Converter

Power -48, 24 and 12 Volt Site Equipment from One System.

Features

* 19'', 2U rack mount shelf with integrated power distribution

* 90-250 VAC input, Power Factor Corrected

* 2 power bays accept 1000 or 2000 watt modular rectifiers

* 74 amp, 4000 watt total max. output capacity, (37 Amp, 2000 Watt, N+1) @ - 48 VDC

* 2 power bays accept DC-DC modules

* -48V to 12V and -48V to 24V

* Output temperature compensated for precise battery charging

* -48VDC circuit breaker distribution capacity with tripped breaker alarm

* 10 DC circuit breaker distribution capacity, with tripped breaker alarm

* 1 each DC-DC converter output circuit breaker distribution with tripped breaker alarm

* Master disconnect breakers for two 48 volt battery banks, with tripped breaker alarm

* Controller with digital display of up to three system DC system parameters with TCP/IP interface and SNMP monitoring/logging

* Alarm contacts monitor major system functions

* Low voltage disconnect built in

* Easily configures to meet site power requirements

Complete system design and assembly to your application parameters: Rectifier and DC-DC configuration, circuit breaker installation, and programing of alarms and monitors. Installation in a relay rack with batteries and wiring also available.
