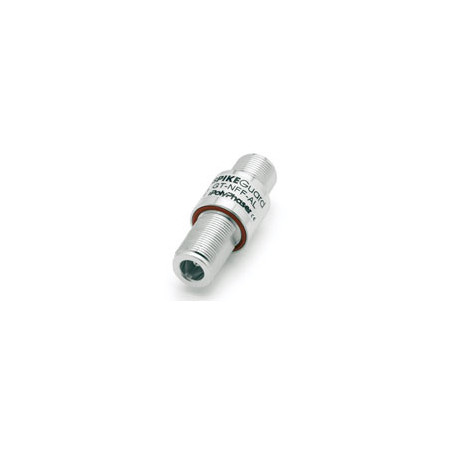

• PolyPhaser Bulkhead Coaxial RF Surge Protector

PolyPhaser Bulkhead Coaxial RF Surge Protector, DC - 6GHz, 90W, 60V Max, 20kA, Gas Discharge Tube, N-Female

Manufacturer PolyPhaser
Part Number GT-NFF-AL
Out of stock

Quick look

Product Types: Lightning Arrestors
$76.99
Pricing may be subject to tariffs.
This product is currently unavailable. Please call +1 888 946 6266 to check availability.

1-888-WINNCOM / sales@winncom.com

Available Monday through Friday, from 8:00 AM to 5:00 PM EST.

Gas tube lightning protection with excellent VSWR and superior RF performance characteristics for equipment operating between dc and 7 GHz with up to 90 W RF power configured with N female connectors - bidirectional.


Features


- Aluminum Construction


- Weather Proof When Installed


Specifications for PolyPhaser GT-NFF-AL


Mount Type - Bulkhead Mount


Standards - CE Compliant, RoHS Compliant


Line Voltage - 50 Vdc Max


Frequency Range - dc to 7.0 GHz


Protected Side Connector - N Female


Surge Side Connector - N Female


Turn On Voltage - 150 Vdc (spark over)


VSWR - dc TO 3.0GHz @ =1.1dB TO 1 dc TO 4.0Ghz @ =1.2bB TO 1 dc TO 7.0Ghz @ =1.4 TO 1


Insertion Loss - dc TO 4.0Ghz @ =0.1dB dc TO 7.0GHz @ =0.25dB


RF Power - 90W/CW @ 30MHz, 9W/CW @ 3GHz


Data Sheet

Product Types Lightning Arrestors
