Transtector DC EDGE III -48

Power Distribution Panel - DC Edge III

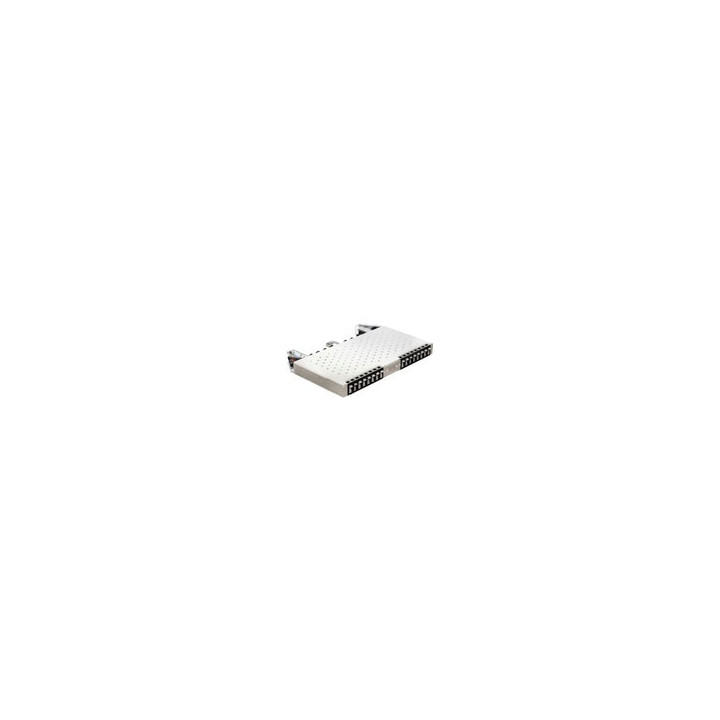

The DC Edge III Model 200QF 8/8 is a DC power distribution panel. This is a rack mounted panel that is compatible with 19" or 23" rack widths. There are a total of 4 inputs (2 per side) capable of handling 100 A per input. There are 16 outputs which accept Carling[tm] and AIRPAX© hydraulic/magnetic rocker style breakers ranging from .1 A to 30 A (not to exceed the input rating on each bus, see Installation Manual 1402-028 for installation instructions and accepted breaker part numbers).

Features

- 30 A max current per breaker

- Compact 1 RU

- High current capability - four 100 A inputs

- Universal voltage

- Front load circuit breakers

Specifications for Transtector DC EDGE III Power Distribution Panel

Electrical Configuration: -20 to -48 VDC

Mount Type: 19" or 23" rack mount (1RU)

Standards: UL 60950, File E312258, NEBS compliant

Inputs: Dual 1/4" - 20 studs on 5/8" centers

Input Line Amperage: 100 A per feed, max

Outputs: Quad dual-pin, keyed Molex male connectors

Operating Voltage: -20 to -74 VDC
