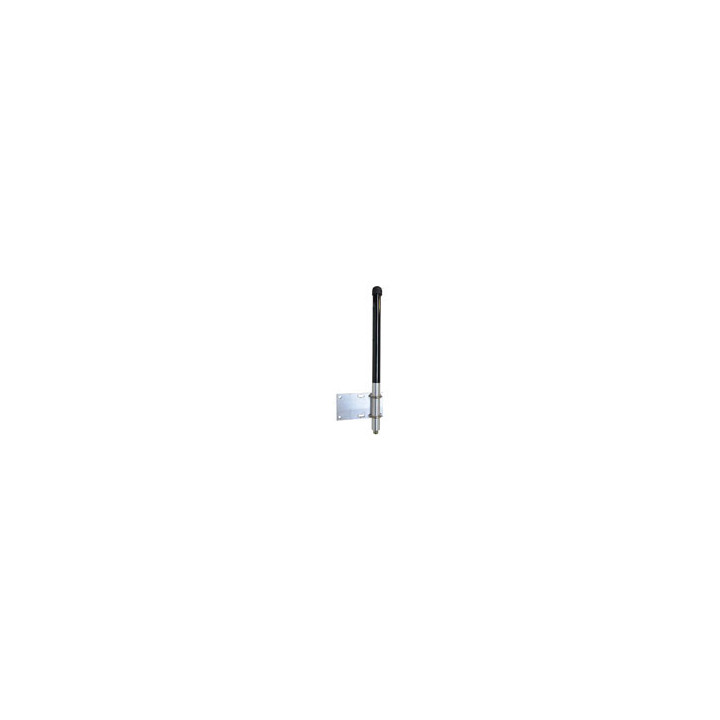

• 12 dBi Omnidirectional Antenna with N-Female Connector

12 dBi Omnidirectional Antenna with N-Female Connector, 2.4GHz ISM band, Black, SOI

Brand Mobile Mark
Part Number OD12-2400-BLK

Quick look

Product Features: ETSI | FCC | Outdoor | Vertical Polarization
Antenna Types: Omnidirectional
Frequencies: 2.3-2.7 GHz | 2.4 GHz

1-888-WINNCOM / sales@winncom.com

Get your business the equipment it needs with LEAF.

Omni-Directional Antennas 2.4 GHz


The OD Series antennas provide omni-directional coverage for Wi-Fi 2.4 GHz applications. Four models are available from 3-12 dBi gain.


These antennas are colinear arrays. Unique phasing cancels out-of-phase current distribution, improving performance. The OD series are free space antennas; no ground plane is required.


Unique options for the OD series are add-on Reflector Kits that beam shape the omni pattern. Reflector options are available to provide cardioid shape in 90 degree, 120 degree & 180 degree patterns.


These can result in improved directional gain and isolation for reduced interference.


The antennas are durable and rugged. They can withstand the harshest environments of snow, wind, rain and ice.


The feed assembly is made of precision machined aluminum components and is irridited for weather protection. These antennas come with all the hardware needed to install it to a mast.


For ISM, Part 15 compliant connectors are available (reverse polarized), please consult your sales representative.


* 3 dBi, 6 dBi, 9 dBi & 12 dBi antennas provide uniform omni coverage


* Unique design allows economical build out


* Reflector options provide directional beamshaping & sectorization


Data Sheet

Product Features ETSI | FCC | Outdoor | Vertical Polarization
Antenna Types Omnidirectional
Frequencies 2.3-2.7 GHz | 2.4 GHz
