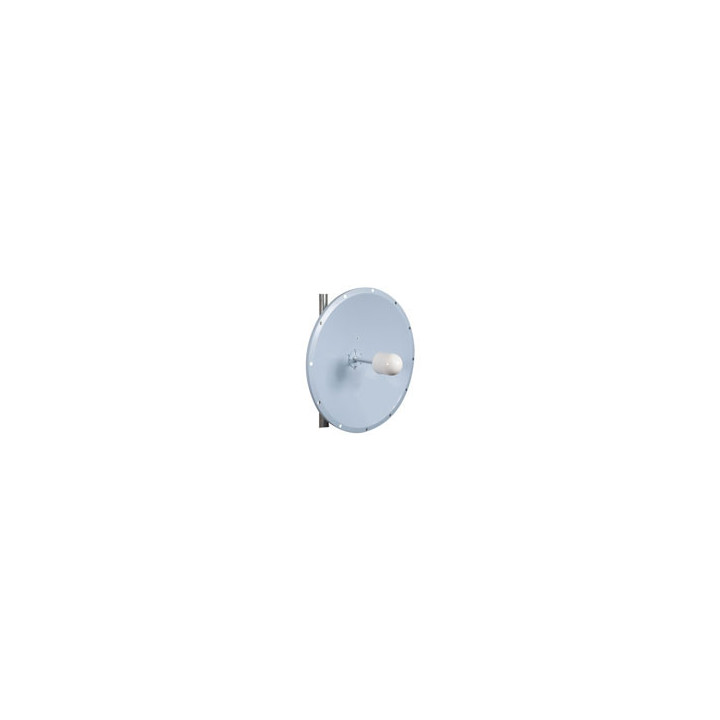

2-Foot 3.5-3.8GHz Dual Polarity Parabolic Dish Antenna with 2x N-Female Connectors, CBRS compatible

The KP-35PD2-N is a 2-foot 24 dBi parabolic antenna operating from 3.5 - 3.8 GHz. This antenna includes dual horizontal and vertical polarization and provides 24 dBi gain with a focused main beam of 9 degree beamwidth that has minimal side-lobes and back-lobes that outperform similar sized flat panels.

This parabolic antenna comes with a pair of pre-attached, 36" LMR 200 pig-tail cables with N-female connectors which simplifies installation and minimizes taping. Use this parabolic antenna over a flat panel antenna to maximize the potential of your radio by improving signal strength and reducing the noise floor in your link.

Our parabolic antennas are perfectly suited for high density point-to-point client-premises or backhaul application requiring 2x2 MIMO in the 3.5 GHz Citizens Broadband Radio Service (CBRS) frequency band. This antenna supports LTE deployments in the CBRS 3.5 - 3.8 GHz spectrum.

Rugged and Weatherproof

The 2-foot parabolic antenna features an industrial-grade powder-coated reflector, feed horn, and mounting brackets which allow 15 degree if elevation mechanical tilt and installation for pipe diameter from 1.2" to 2.5". This CBRS parabolic antenna is built to withstand speeds of up to 130 mph and survive in a wide range of challenging environments.

Features

- 24 dBi gain with 2ft diameter dish

- 2 x 2 MIMO dual polarization +/-90deg

- Comes with 36'' LMR 200 Pigtails and N-type Female Connectors

- Low side lobes and high front to back

- Compact shipping size

- Rugged design with heavy-duty brackets and weather-resistant powder coating for industrial and corrosive applications
