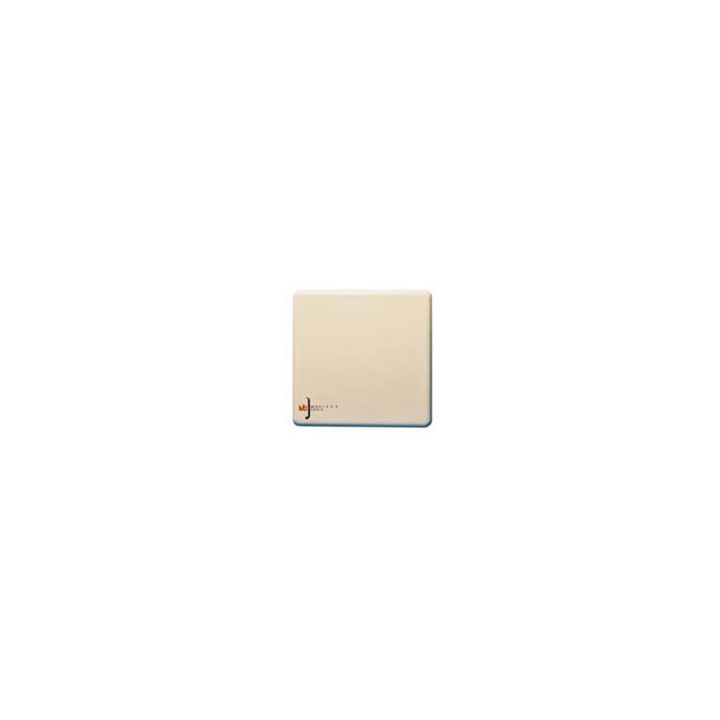

• MTI CPE Panel Antenna, 5.15-5.875GHz

MTI CPE Panel Antenna, 5.15-5.875GHz, Gain: 18 dBi, Antenna for enclosure, 7.5"

Brand MTI Wireless Edge
Part Number MT-485001/S/R

Quick look

Product Features: Single Polarity
Antenna Types: Directional Panel
Frequencies: 4.9-5.8 GHz | 5.2 GHz | 5.4 GHz | 5.8 GHz

1-888-WINNCOM / sales@winncom.com

Get your business the equipment it needs with LEAF.

Specifications:


Electrical


REGULATORY COMPLIANCE


ETSI EN 302 085 V.1.2.2 (2003-08) RoHS, CE 0682

FREQUENCY RANGE


5.15 – 5.875 GHz

GAIN


17.5 dBi (min) @ 5.15-5.25GHz
18 dBi (min) @ 5.25-5.875GHz

VSWR


1.5:1 (typ) 1.7 : 1 (max)

3 dB BEAMWIDTH


 18° (typ)

POLARIZATION


Linear Vertical or Horizontal

SIDELOBES LEVEL


AZ
5.15-5.875 ETSI EN 302 085 V.1.2.2 TS1-TS3
5.15-5.875 -13 dB (max)
EL
5.15-5.35 -18dB
5.35-5.875 TS1-TS3

CROSS POLARIZATION


ETSI EN 302 085 V.1.2.2 TS1-TS3 -21dB (max)

F/B RATIO


ETSI EN 302 085 V.1.2.2 TS1-TS3
-30 dB (max)

INPUT IMPEDANCE


50 (ohm)

INPUT POWER


6W (max)

LIGHTNING PROTECTION


DC Grounded

Mechanical


DIMENSIONS (LxWxD)


190 x 190 x 30.5 mm (max)

WEIGHT


0.7 kg (max)


RADOME


Plastic


BASE PLATE


Aluminum with chemical conversion coating

MOUNTING KIT


Requires Environmental Enclosure

Environmental


Temperature Range


-45°C  +70°C

Humidity


95%

ICE AND SNOW


25 mm Radial

WIND SPEED


SURVIVAL: 220 Km/h
OPERATION: 160 Km/h

Data Sheet

Product Features Single Polarity
Antenna Types Directional Panel
Frequencies 4.9-5.8 GHz | 5.2 GHz | 5.4 GHz | 5.8 GHz
Antenna Sizes 1 foot and smaller
