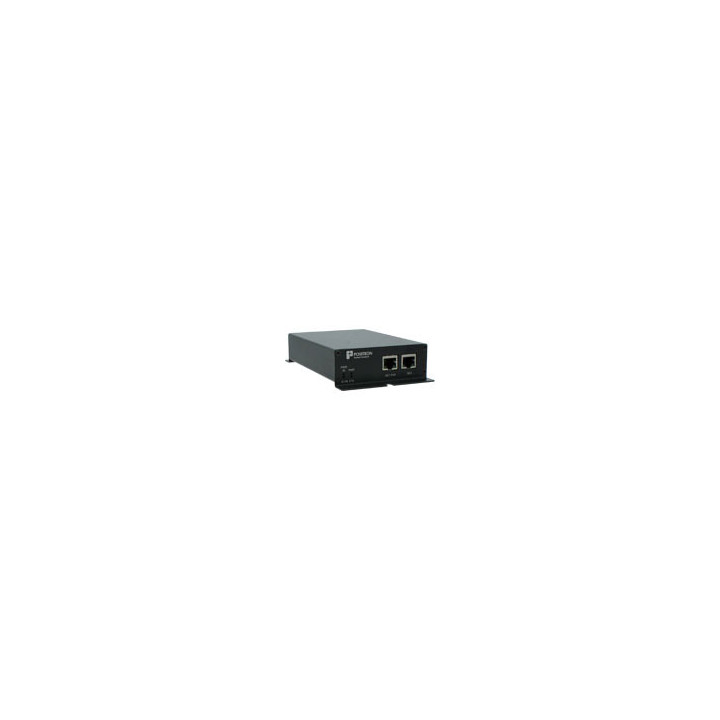

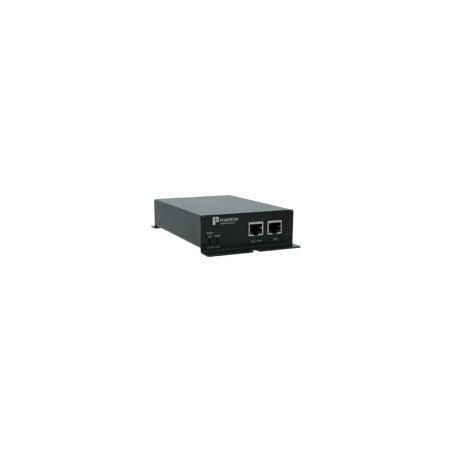

GAM Twisted Pair CPE G.hn SISO/MIMO to Gigabit Ethernet Bridge with Line Power and 802.3af.PoE+ Out 802.3at support

Delivering Gigabit to the Home over Existing Wiring

Line Powered G.hn to Ethernet Endpoint with POE/POE+

``Fiber to the Home'' is far from the only and most efficient technology to deliver Gigabit Internet access to subscribers. Retrofitting an existing (brownfield) Multi-Dwelling Unit (MDU) with fiber is complex and expensive.

The G2002 series of G.hn to Ethernet Endpoint is line-powered from the Positron G.hn Access Multiplexer (GAM) and complements the popular G1001 and G1002 series with support for two (2) Gigabit Ethernet ports with one of the ports providing power to Ethernet devices as per the 802.3af / 802.3at standards.

With the G2002-M+ and line power from the GAM, you can now combine G.hn over copper to build whole-MDU Wi-Fi coverage with seamless roaming in a very flexible approch. This allows Operators to install and control the Wi-Fi infrastructure using their preferred Wi-Fi vendor.

Introducing G.hn

The G2002-M+ supports the ITU-T G.9960 G.hn Wave-2 standard and is designed to operate over the existing telephone wiring (UTP, CAT-3 or CAT-5/5e) and deliver a Gigabit Internet service to each subscriber at a lower cost and without the complexity and delays associated with in-building fiber installation. G.hn is used as an Access technology by Operators looking to simplify their access network and backend infrastructure with an Ethernet-like technology that is highly scalable without some of the inherent complexity of DSL-related technologies. With G.hn as the Access technology, Operators deliver advanced services such as Gigabit Residential Internet and 4K IPTV.

About the G2002-M+ Managed Demarcation Point with POE / POE+ support

The G2002-M+ terminates the G.hn link under the control of the Positron GAM. It makes sure the information transmitted over the G.hn links is protected with strong AES-128 encryption. It offers comprehensive VLAN support as per the IEEE 802.1q standard and the VLAN mode of each port is individually configurable: Trunk, Access or Untagged.

The G2002-M+ operates over twisted pair, is managed by the GAM and provides Power over Ethernet (POE or POE+) to devices such as Wi-Fi Access Points, IP Cameras or Residential Gateways (RG).

The Positron GAM family is designed to optimize coverage of Gigabit Internet services in an MDU or MTU. The G2002-M+ can be line powered when the GAM is coupled with the GAM-PWR-12-M+ or GAM-PWR-24-M+ Mid-Span Power Injector solution. In this case, the G2002-M+ supports the IEEE 802.3af POE standard and delivers up to 15.4W to devices connected to the GE1 (PoE-capable) Gigabit Ethernet port. When locally powered, the G2002-M+ supports the IEEE 802.3at standard and delivers up to 30W to serve devices such as Wi-Fi 6 Access Points or Routers.
